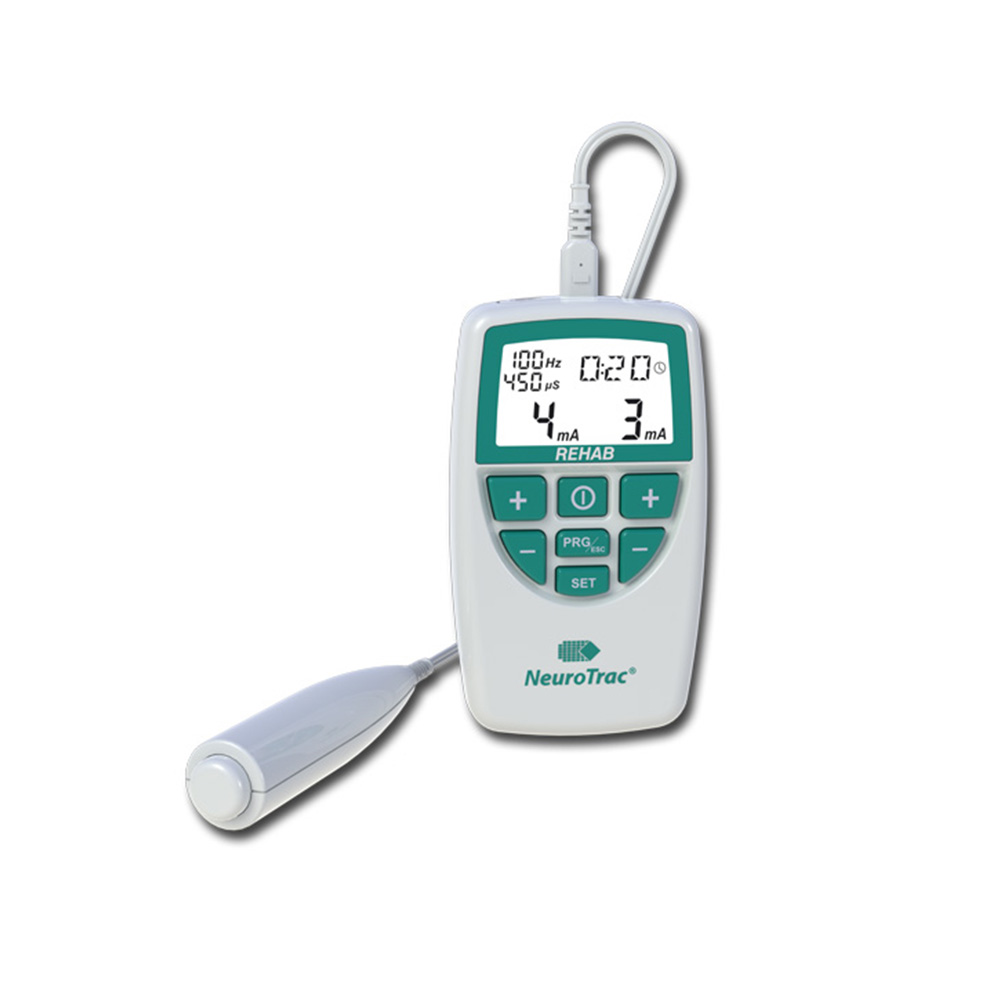

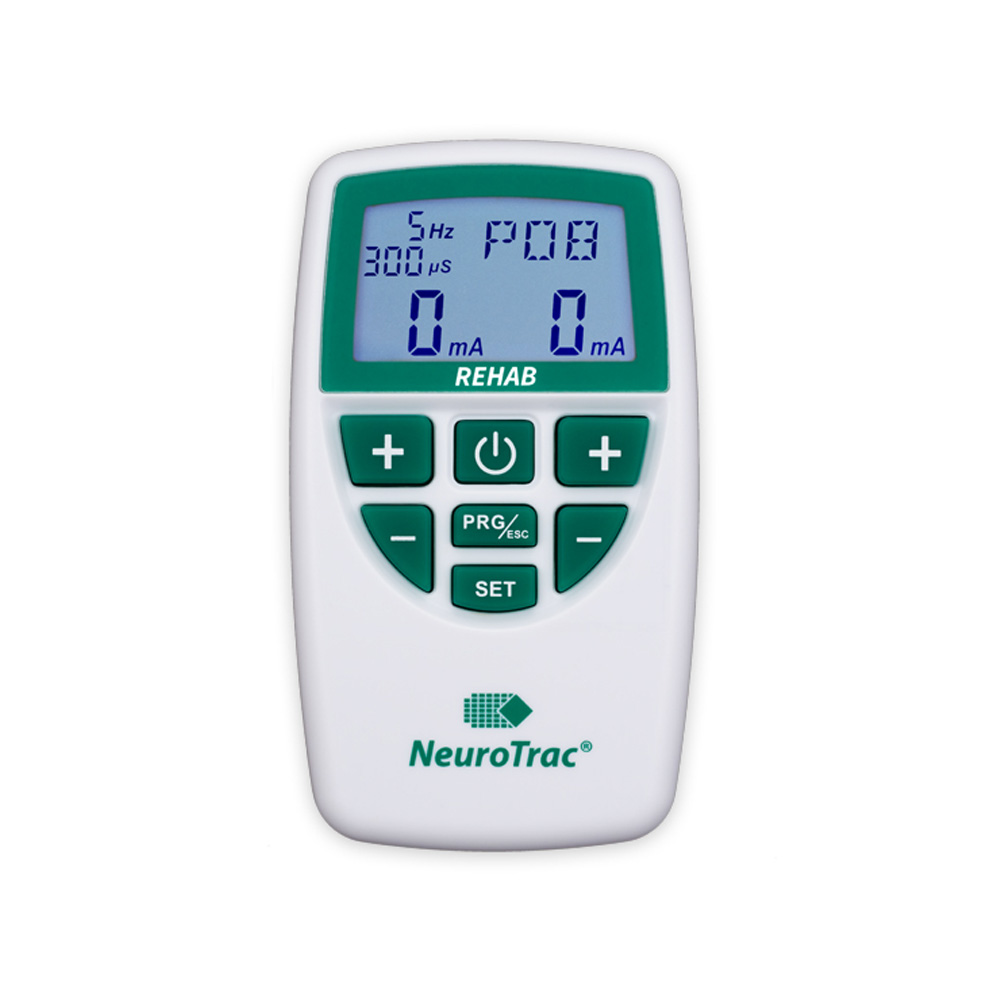

Neurotrac Rehabilitation Unit

The Neurotrac Rehab TENS & EMS machine is an advanced digital dual-channel unit with a remote hand-held button. It is designed for those that want more than the basic TENS machine. The TENS and EMS treatment modes provide maximum flexibility for pain management and muscle stimulation. The Neurotrac Rehab TENS is designed for use with muscle & sports-related type injuries. It has 10 preset TENS programs and 10 preset neuromuscular stimulation programs. The wired remote hand-held button facilitates easy changing of output power and output modes.

Indications:

• Foot drop
• Sports injuries
• Increasing muscle strength
• Preventing disuse atrophy
• Incontinence
• Oedema
• Pain relief

Features:

• Dual channel TENS and NMES device with remote switch-controlled programs.
• 10 Preset TENS programs, and 10 Preset Neuromuscular Stimulation programs. The wired remote switch control of mA by the patient ( to speed up the neuro-muscular re-education) facilitates a range of rehabilitation protocols.
• 2 Customisable TENS and 1 Customizable remote STIM program.
• Lock mode function for measuring and recording home compliance (mA and total time used).
• Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
• Keypad with bigger buttons for ease of use.
• Compact, light, and reliable

Specifications:

• Dual channel: individually isolated circuits.
• Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50 ìS – 450 μS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 – 200 Hz [2% accuracy].
• Mode: Continuous, Burst, or Modulated.
• Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz or 185 Hz, over 2 seconds.
• Modulation mode: the 6-second cycle of concurrent width modulation and pulse repetition rate modulation. TENS 7: Width starting at 50 ìS and increasing exponentially to 250μS in three seconds and then returning back to 50 ìS in the next three seconds. The rate starts at 20 Hz, increases exponentially to 85 Hz, and then returns to 100 Hz. TENS 8: Width fixed at 200 μS. The rate starting 32 Hz, increases exponentially to 100 Hz over 3 seconds and then returns to 32 Hz in the next 3 seconds.
• Time duration of the custom programs selectable: 1 minute to 12 hours.
• Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
• Physical dimensions: 119.2 x 69 x 28.7 mm
• Weight: 0.07 kg without battery, 0.1 kg with battery.

What is Included:

• 1 x Neurotrac Rehab Unit
• 1 x Wired switch-control
• 1 x 9V Battery
• 2 x Leads
• 1 x User Manual

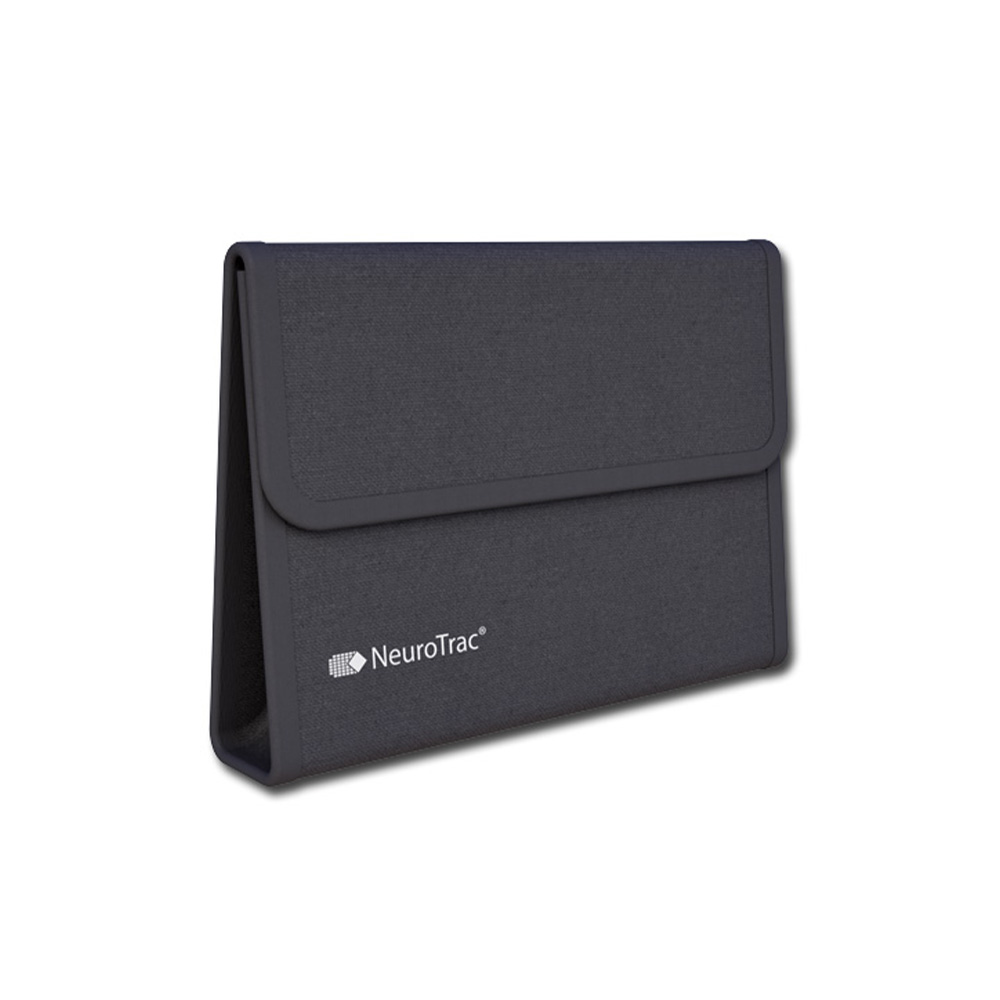

• 1 x Carry Bag

**This unit does NOT include electrodes and you will need to purchase them separately

Nappi Code: None

Warranty

This model carries a warranty of 2 Years from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
