This portable Yuwell suction unit is designed to support the removal of phlegm and respiratory secretions when a patient has difficulty clearing them independently. Its intended use also extends to aspiration of fluids such as pus and blood during clinical practice, supporting a broader range of suction requirements across patient-care environments.
Suction pressure adjusts continuously to the required level, giving the operator direct control while the integrated gauge provides a clear visual reference throughout use. The oil-free system helps avoid oil-mist contamination, while overflow protection helps keep collected fluid from entering the suction mechanism.
A key advantage of this suction unit is its flexibility when care moves beyond a fixed location. Rechargeable battery and 12V vehicle operation support suction during patient transport, homecare and other mobile applications, while the 1000mL collection chamber provides practical capacity for secretion management.
Clear Secretions with Support: Help when independent coughing or expectoration is not enough.
Provides practical suction support for removing phlegm and respiratory secretions when a patient cannot clear them effectively on their own.
Suction That Moves with Care: Keep suction support available as the patient moves between care environments.
Portable operation supports continuity of suction across homecare, clinical, transport and other mobile care settings.
Best Suited For:
- Respiratory secretion and phlegm suction
- Patient transport and mobile suction
- Clinical aspiration of fluids such as pus and blood
- Clinical and patient-care environments
- Nursing and homecare suction
- Suction where mains electricity is not readily available
Benefits:
- Assists removal of phlegm and respiratory secretions when independent clearance is difficult
- Supports secretion management during illness, reduced consciousness and post-operative care
- Enables suction during patient transport and mobile care
- Supports aspiration of fluids during relevant clinical practice
- Extends suction support across clinical, nursing and homecare environments
- Provides suction access where mains electricity is not readily available

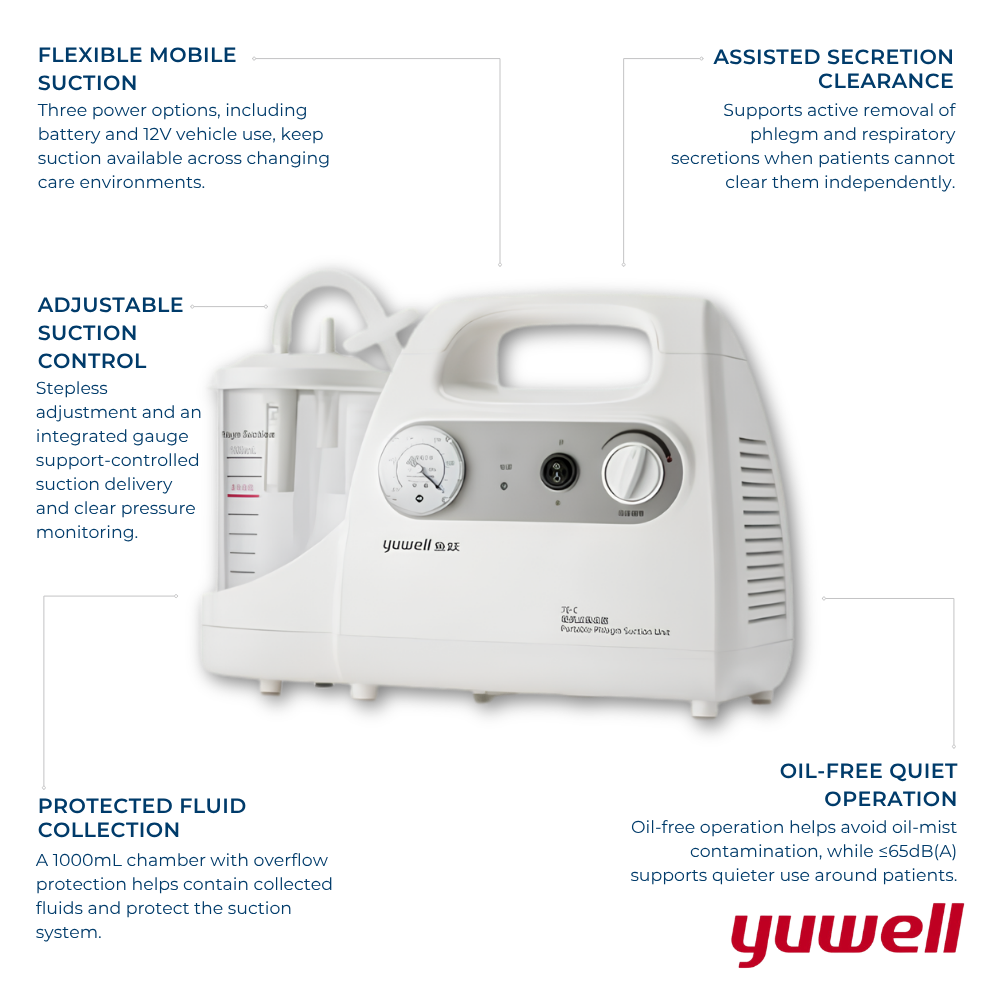

All Features:
- Adjustable Negative Pressure: Stepless adjustment allows the required suction level to be selected.
- Integrated Pressure Gauge: Provides visual monitoring of negative pressure during operation.
- Maximum Negative Pressure: ≥0.075MPa.
- Pumping Rate: 17–22L/min.
- Negative-Pressure Only Operation: Designed so that positive pressure is not generated during operation.
- Three Power Options: Operates from AC power, 12V DC or the built-in rechargeable battery.
- Built-In Rechargeable Battery: Provides approximately 30 minutes of operation on a full charge.
- Vehicle Power Connection: Supports operation from a compatible 12V vehicle power source.
- Battery Charge Indicator: Provides an indication of battery charging status.
- Portable Design: Compact construction supports movement between care environments.
- Oil-Free Pump: Helps avoid oil-mist contamination during operation.
- Overflow Protection: Helps prevent collected fluid from entering the suction mechanism.
- 1000mL Collection Reservoir: Provides dedicated capacity for collected secretions and fluids.
- Low-Noise Operation: Operates at ≤65dB(A).
- Intermittent Operating Cycle: Provides up to 30 minutes of continuous operation followed by a 30-minute off period.
- 50% Continuity Rate: Supports the specified 30-minute on / 30-minute off operating pattern.
Technical Specifications:

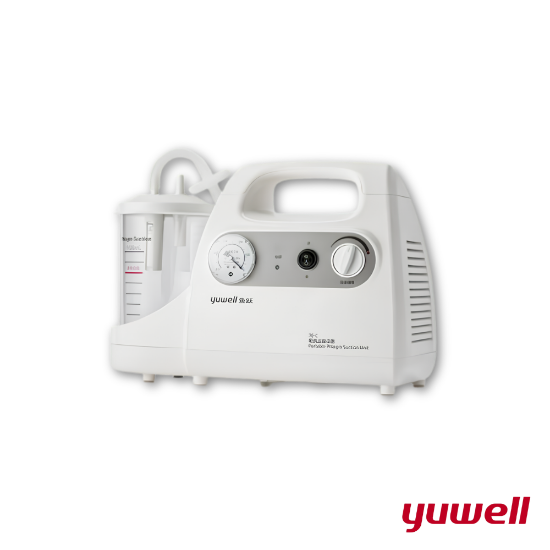

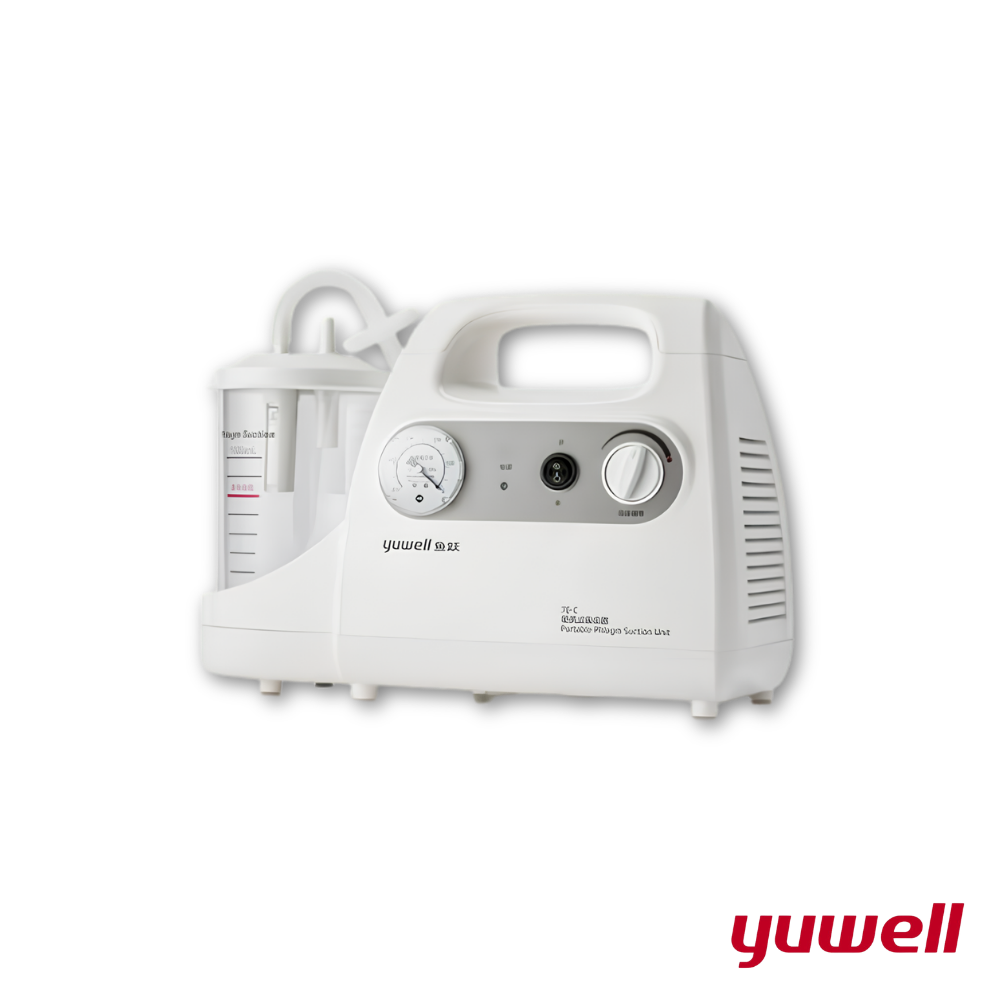

- Product Name: Yuwell Portable Phlegm Suction Unit
- Model: 7E-G
- Device Type: Portable phlegm suction unit
- Maximum Negative Pressure: ≥0.075MPa
- Pumping Rate: 17–22L/min
- Pressure Adjustment: Stepless adjustable negative pressure
- Negative-Pressure Regulating Range:02MPa to maximum negative pressure
- Pressure Display: Integrated negative-pressure gauge
- Power Sources: AC power, DC 12V and built-in rechargeable battery
- DC Power Supply: 12V
- Input Power: 90VA
- Vehicle Operation: Compatible 12V vehicle power source
- Reservoir Volume: 1000mL, 1 piece
- Pump Type: Oil-free pump
- Overflow Protection: Yes
- Noise Level: ≤65dB(A)
- Dimensions: 370 × 180 × 280mm
- Weight:8kg
- Battery Operating Time: Approximately 30 minutes on a full charge
- Operating Cycle: 30 minutes on, 30 minutes off
- Continuity Rate: 50%
What's Included:
- Yuwell Portable Phlegm Suction Unit
- 1000mL Collection Chamber
- User Manual
Warranty:
1-year warranty on the main unit. Accessories and the collection bottle are excluded from warranty coverage.
* For use by healthcare professionals or instructed caregivers/users. Follow the User Manual for correct operation, contraindications and precautions.
Frequently Asked Questions (FAQs):
- Is this suction unit suitable for homecare as well as clinical use?
Yes. It is suitable for home healthcare and clinical secretion management, including situations where an instructed caregiver needs to provide suction outside a hospital or clinic.
- Is the suction unit limited to removing phlegm?
No. In addition to phlegm and respiratory secretions, Yuwell documentation supports aspiration of fluids such as pus and blood during relevant clinical practice.
- Who is intended to operate the suction unit?
It is intended for healthcare professionals and instructed caregivers/users who understand the required suction technique, pressure settings and cleaning procedures.
- Is it suitable when suction needs to remain available as the patient moves between locations?
Yes. Its portable format and multiple power options make it particularly relevant where suction may be required across homecare, transport and other mobile care environments.
