This Yuwell portable suction unit is designed to assist patients who have difficulty clearing phlegm and respiratory secretions due to illness, reduced consciousness or following an operation. Its intended use also extends to aspiration of fluids such as pus and blood during clinical practice, supporting broader suction requirements across clinical and patient-care environments.
High-pressure, high-flow suction is combined with continuously adjustable negative pressure, allowing the operator to set the required suction level for the application rather than rely on a fixed setting. The integrated vacuum gauge provides a clear visual reference throughout use.
The oil-free system helps avoid oil-mist contamination, while the overflow mechanism protects the suction pathway as the collection jar fills. Compact, lightweight construction makes the unit easier to position and move between treatment areas, while its low-noise design supports quieter suction around patients.
Support When Clearance Is Limited: Provide active suction when the patient cannot clear secretions independently.
Supports respiratory secretion removal during illness, reduced consciousness, post-operative care and other situations where independent clearance is limited.
Built For Broader Suction Needs: Extend beyond respiratory secretion removal with one portable suction unit.
Supports aspiration of fluids such as pus and blood during clinical practice, making it useful across a wider range of patient-care and clinical suction requirements.
Best Suited For:
- Phlegm and respiratory secretion suction
- Clinical aspiration of fluids such as pus and blood
- Emergency-room suction
- Operating-room suction
- Patient-care and nursing environments
- Home healthcare suction
Benefits:
- Assists removal of phlegm and respiratory secretions when independent clearance is difficult
- Supports secretion management during illness, reduced consciousness and post-operative care
- Supports aspiration of fluids during relevant clinical practice
- Supports suction across emergency, operating-room and patient-care environments
- Extends secretion-management support to nursing and home healthcare
- Provides quieter, portable suction around patients

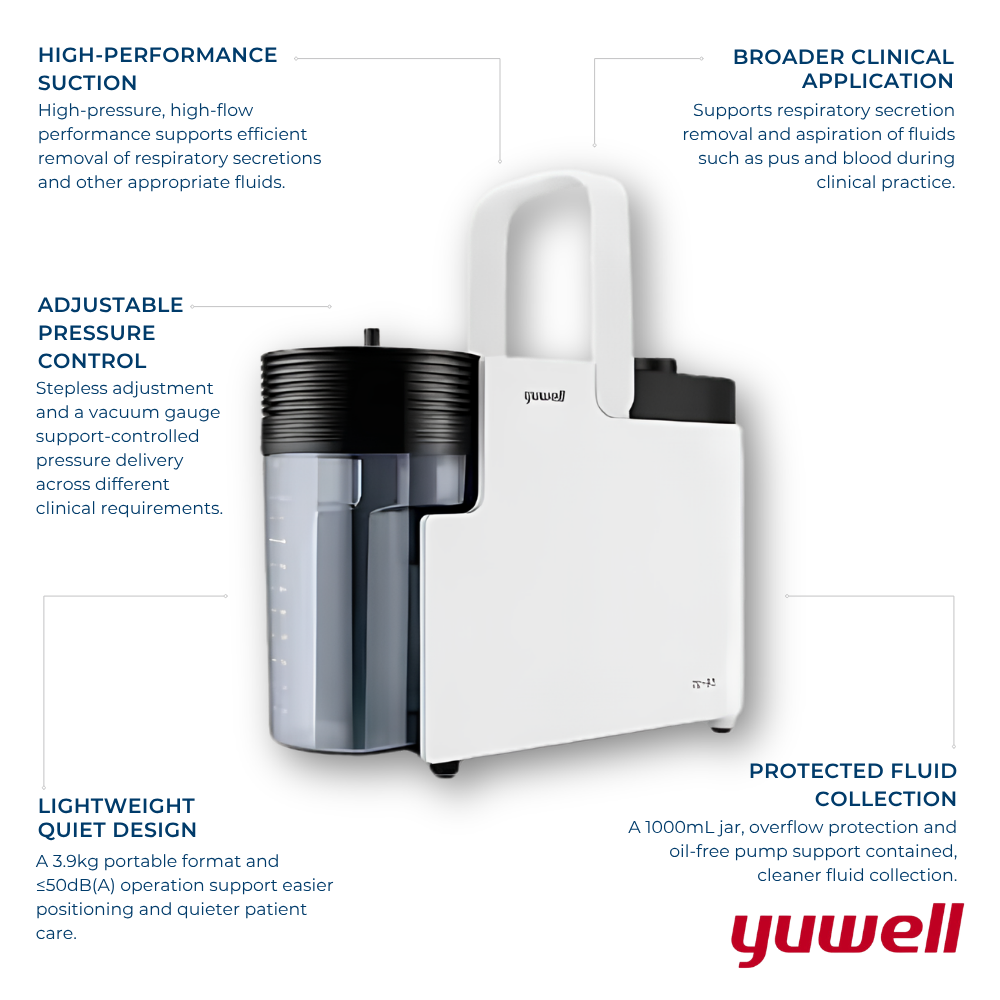

All Features:
- High-Pressure Suction: Provides a maximum vacuum of ≥0.08MPa.
- High-Flow Performance: Provides a confirmed flow rate of ≥22L/min ±2L/min.
- Stepless Pressure Adjustment: Allows negative pressure to be continuously adjusted.
- Integrated Vacuum Gauge: Provides visual monitoring of negative pressure during operation.
- Negative-Pressure Regulating Range: Adjusts from 0.02MPa to maximum negative pressure.
- Negative-Pressure Only Operation: Designed so that positive pressure is not generated during operation.
- Oil-Free Pump: Helps avoid oil-mist contamination during operation.
- Overflow Protection: Automatically interrupts suction when the collection level reaches its operating limit.
- 1000mL Collection Jar: Provides dedicated collection capacity for suctioned fluids.
- Double Mute / Low-Noise Operation: Supports quieter operation at ≤50dB(A).
- Lightweight Portable Design: Compact construction supports easier handling, positioning and movement between care areas.
- Intermittent Operating Cycle: Provides up to 30 minutes of continuous operation followed by a 30-minute off period.
Technical Specifications:

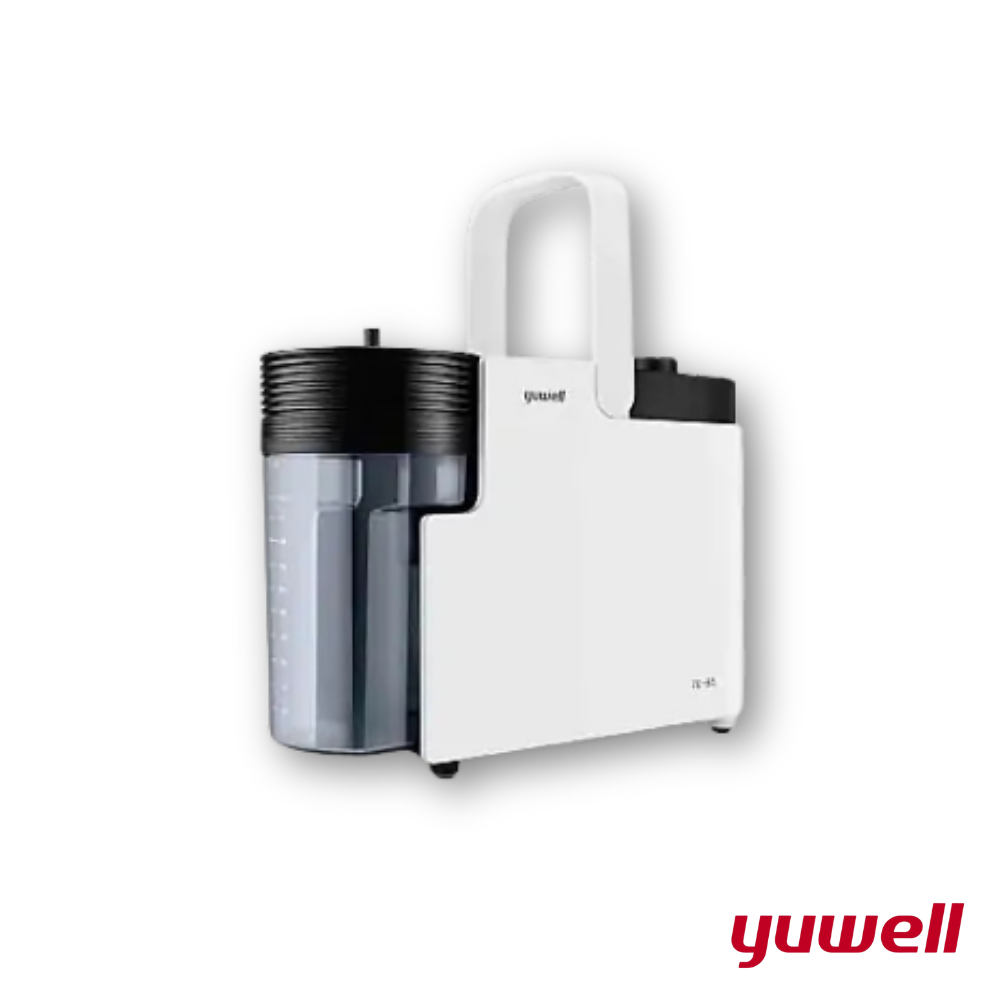

- Product Name: Yuwell Phlegm Suction Unit
- Model: 7E-B5
- Device Type: Portable phlegm suction unit
- Maximum Vacuum: ≥0.08MPa
- Pumping / Flow Rate: ≥22L/min ±2L/min
- Pressure Adjustment: Stepless negative-pressure regulation
- Negative-Pressure Regulating Range:02MPa to maximum negative pressure
- Pressure Display: Integrated vacuum / negative-pressure gauge
- Power Supply: AC220V, 50Hz
- Input Power: 150VA
- Liquid Collection Jar: 1000mL, 1 piece
- Pump Type: Oil-free lubrication pump
- Overflow Protection: Integrated overflow system
- Noise Level: ≤50dB(A)
- Dimensions: 314 × 123 × 233mm
- Weight:9kg
- Operating Cycle: 30 minutes on, 30 minutes off
What's Included:
- Yuwell Phlegm Suction Unit
- 1000Ml Collection Chamber
- User Manual
Warranty:
1-year warranty on the main unit. Accessories and the collection bottle are excluded from warranty coverage.
*For use by healthcare professionals or instructed caregivers/users. Follow the User Manual for correct operation, contraindications and precautions.
Frequently Asked Questions (FAQs):
- Is the 7E-B5 intended only for respiratory secretion suction?
No. Along with phlegm and respiratory secretion removal, it is intended for aspiration of fluids such as pus and blood during clinical practice.
- What types of care environments is this suction unit suited to?
It is intended for a broad range of care environments, including clinical treatment areas, emergency and operating-room applications, nursing care and home healthcare.
- Who should determine the suction settings and catheter used?
The suction level and catheter should be selected according to the clinical requirement. Medical personnel should choose the appropriate catheter and regulate the negative pressure accordingly.
- Is it suitable for a dedicated bedside or treatment-area suction setup?
Yes. Its portable format allows it to be positioned where suction is required, while mains-powered operation suits environments where a dependable electrical supply is available for routine clinical, nursing or homecare use.
