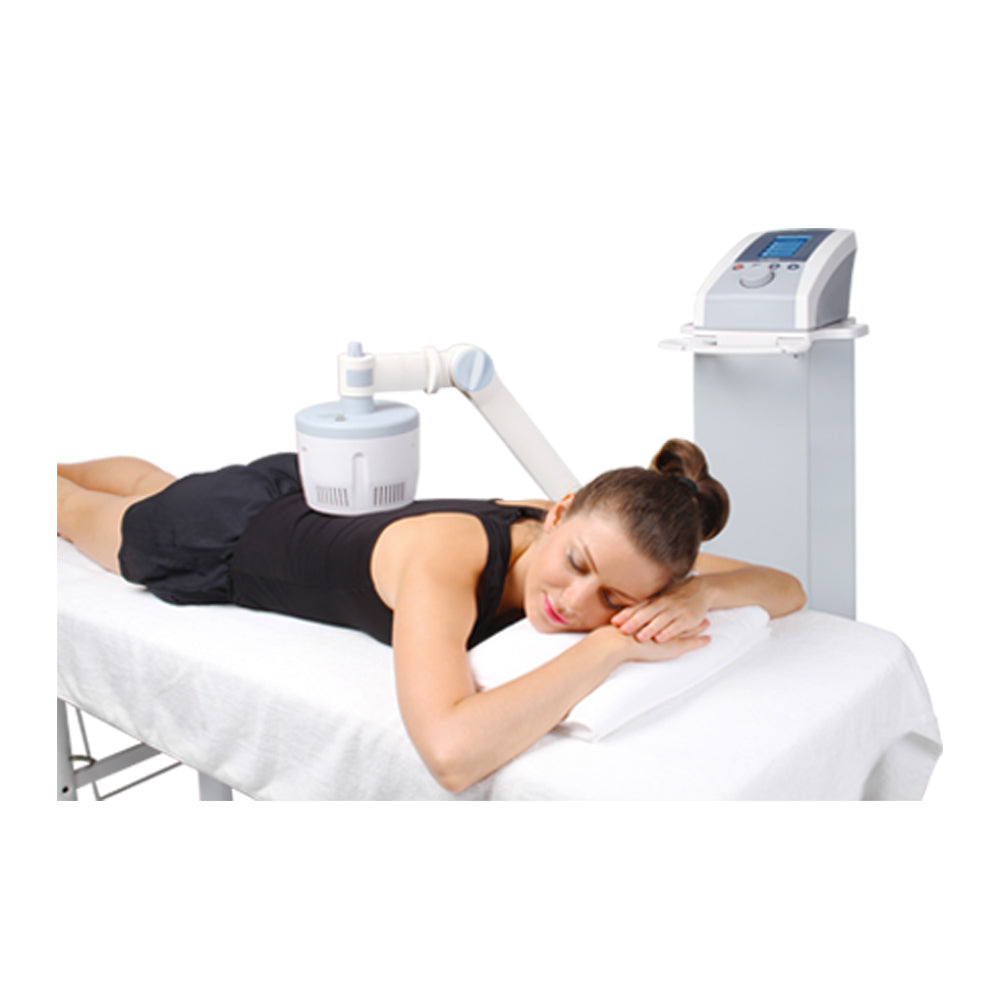

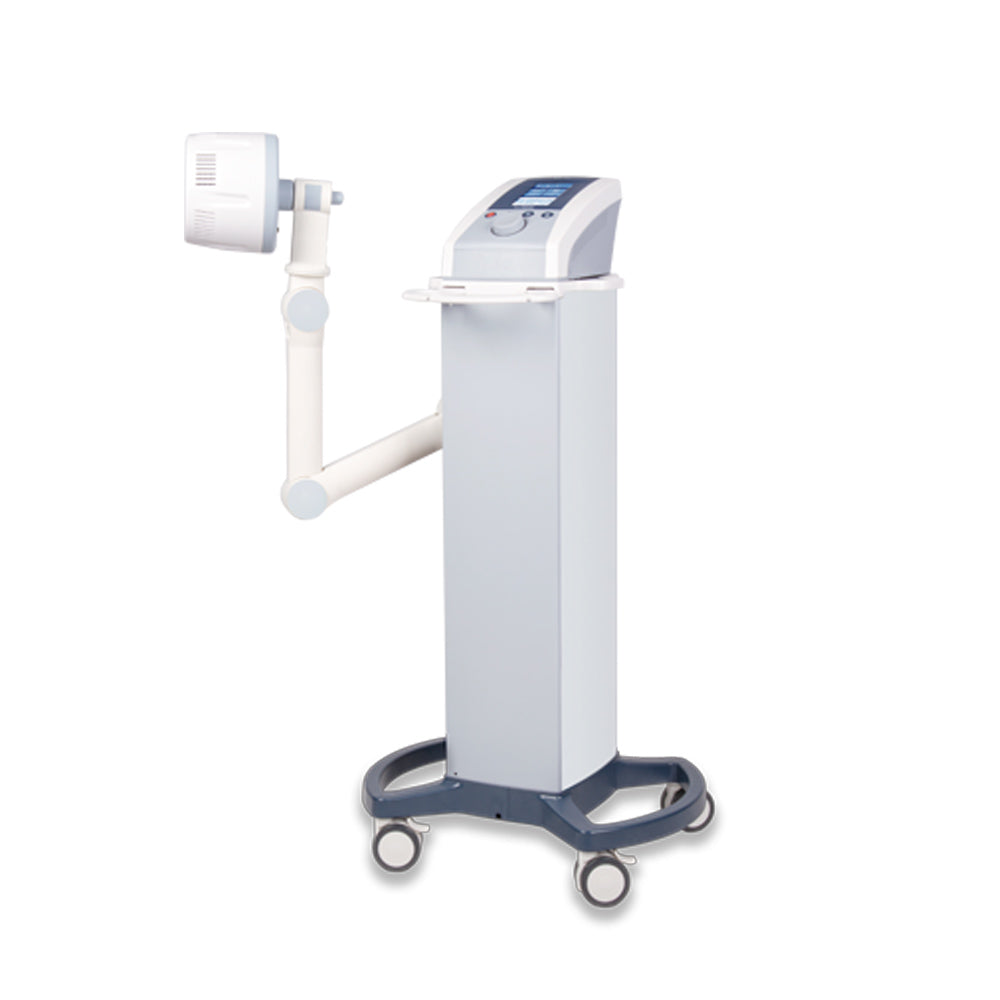

The Shortwave Diathermy (SWD) system offers continuous and pulsed modes for generating comforting heat, specifically intended for treating muscle spasms, joint contractures, and chronic pain relief. The inductive electrode utilises a coil , resulting in superior deep-tissue heating, particularly in well-vascularised muscle and deep tissues.
This state-of-the-art thermotherapy machine achieves a greater penetration depth and can treat larger areas compared to conventional methods like hot packs or ultrasound. It's suitable for use across hospitals and clinics.
Application is simplified by its robust, multi-jointed electrode arm with a Sudden-fall Prevention design, ensuring precise positioning and comfortable treatment of all body areas, enhancing user and patient safety.
Features:
- Therapy Modes: Continuous (100 W max) and Pulsed (200 W max) for thermal/athermal treatment.
- Clinical Advantage: Provides deep heat to a larger area than ultrasound.
- Inductive Applicator: Utilises a coil (e.g., 14 cm diameter) to create a magnetic field.
- Protocols: 99 user-defined and 6 clinical presets for tailored treatments.
- Applicator: Inductive electrode (e.g., 14 cm diameter) for superior deep-tissue penetration.
- Energy Control: High-Efficiency Auto-tuning for continuous power optimisation.
- User Interface: Full-colour LCD touchscreen with dosimetry and anatomical graphics.
- Arm System: Multi-jointed arm with Sudden-fall Prevention for precise, safe positioning.
- Pulse Control: Adjustable width (20-400 µs) and frequency (10-800 Hz) for exact dosing.
- Software: Multilingual, with USB port for quick updates.
What is Included:
- User manual
- Power cable
- Electrode arm
- Inductive electrode diameter 14cm
- Cable for the inductive applicator
- Allen wrench
Nappi Code: None
Warranty: This unit carries a warranty of 1 Year from the date of purchase. The warranty applies to the unit only. The warranty does not apply to any of the accessories.
