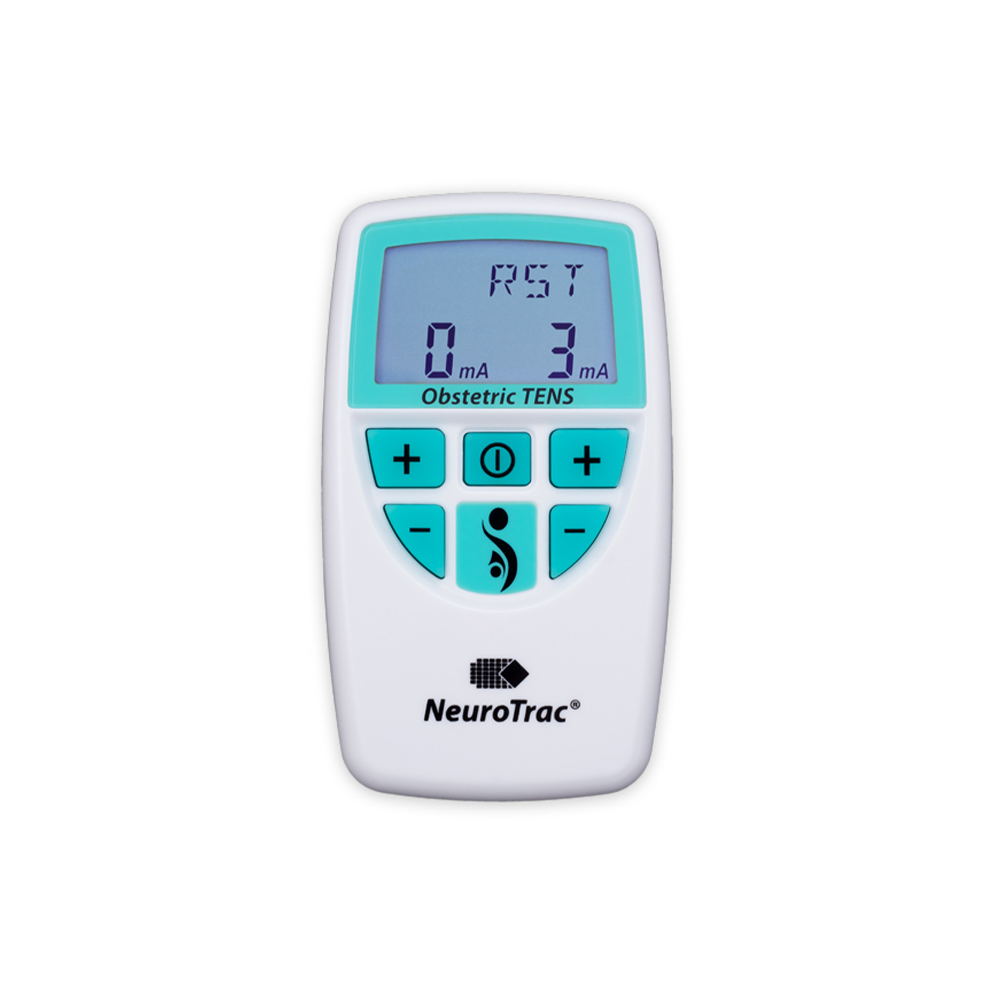

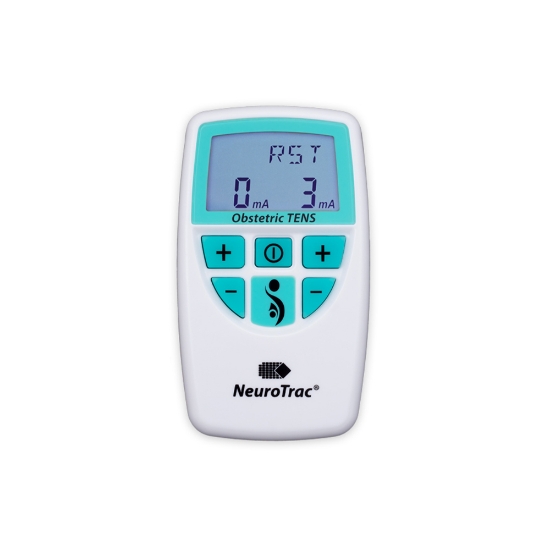

NeuroTrac® Obstetric TENS

NeuroTrac® Obstetric TENS machine relieves the pain and discomfort associated with childbirth. This is a digital dual channel TENS unit, designed for use during labour and childbirth. The NeuroTrac® Obstetric TENS comes with a handheld “Boost” button – a higher frequency stimulation to help during contractions. This allows you to easily switch between Boost and Burst modes.
Manufacturer: Neurotrac
SKU: ECS310SN
R3 910,00
excluding shipping
decrease increase
The Obstetric TENS Stimulator uses four long skin electrodes on the skin close to the spine and connected to the device via lead wires. The stimulation intensity is adjusted until a mild tingling sensation is felt. The NeuroTrac™ Obstetric TENS unit has a handheld push-button control to change the stimulation mode from LOW-frequency burst to HIGH-frequency stimulation. The low frequency is used during rest periods [Between contractions]. As soon as labour contraction is felt strongly, the mode is changed to high-frequency stimulation, once the contractions have subsided, the mode is reverted back to low-frequency burst mode stimulation.

Clinical evidence suggests that to achieve the best pain relief, the stimulator should be used from the first onset of labour pain and for two to three hours after birth. If it is found that insufficient pain relief is achieved with the obstetric TENS unit, then improved relief can be achieved by using smaller amounts of alternative analgesia to complement the TENS unit.

From existing evidence, Obstetric Tens units can be an effective technique for pain control in over 80% of births with no side effects.

Features:

  • Dual-channel Digital Obstetric TENS unit for a simple and non-invasive method to decrease pelvic pain when in labour.
  • Dedicated Labour Pain programme for use with Remote Boost switch for additional pain control during intense pain.
  • No known side effects for mother or baby
  • A clear, bright backlight LCD allows the display to be read more easily in low light or dark conditions.
  • Keypad with bigger buttons for ease of use.
  • Compact, light and reliable

Specifications:

  • Dual-channel: individually isolated circuits.
  • Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load, the maximum will be limited to 65 mA.
  • Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
  • Pulse width: 220μS [2% accuracy].
  • Pulse Rate: 90Hz (Continuous mode) [2% accuracy].
  • Mode: Continuous (Boost mode).
  • Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz, repeating twice every second (Rest mode).
  • Ramp up Time: 0.8 seconds from Rest to Boost.
  • Time duration: continuous until switched off.
  • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
  • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
  • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
  • Physical Dimensions: 108mm x 62mm x 23mm
  • Weight: 0.07Kg without battery, 0.1Kg with battery

What is Included:

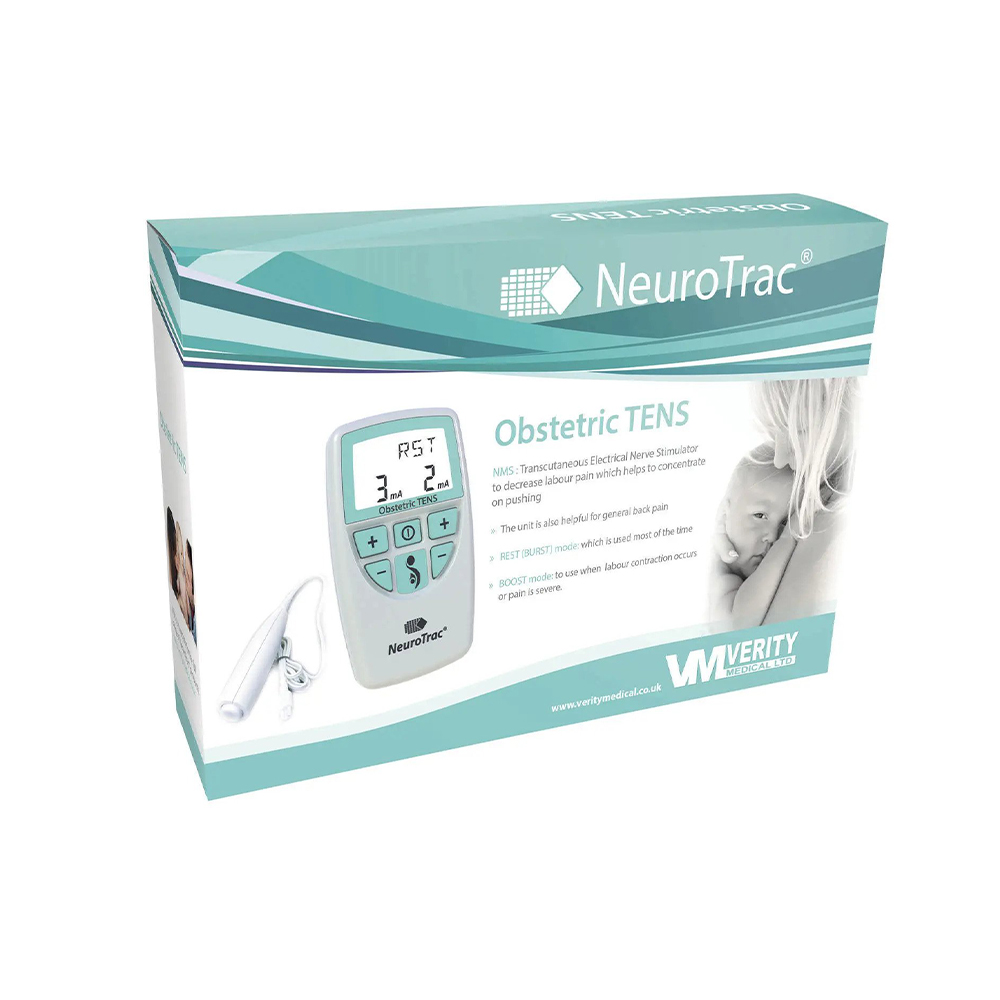

  • 1 x Neurotrac Obstetric Unit
  • 1 x Pack of 4 Electrodes
  • 1 x Remote Boost Switch
  • 1 x 9V Battery

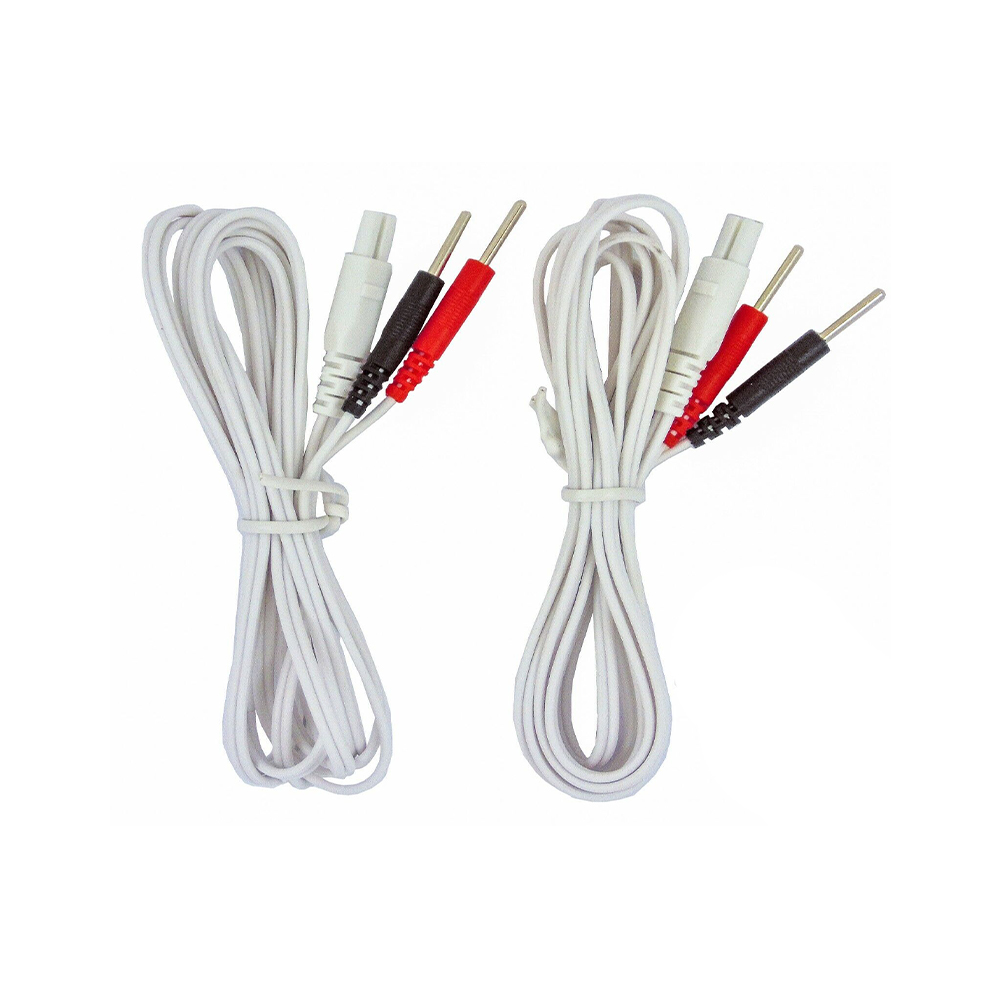

  • 2 x Leads
  • 1 x User Manual

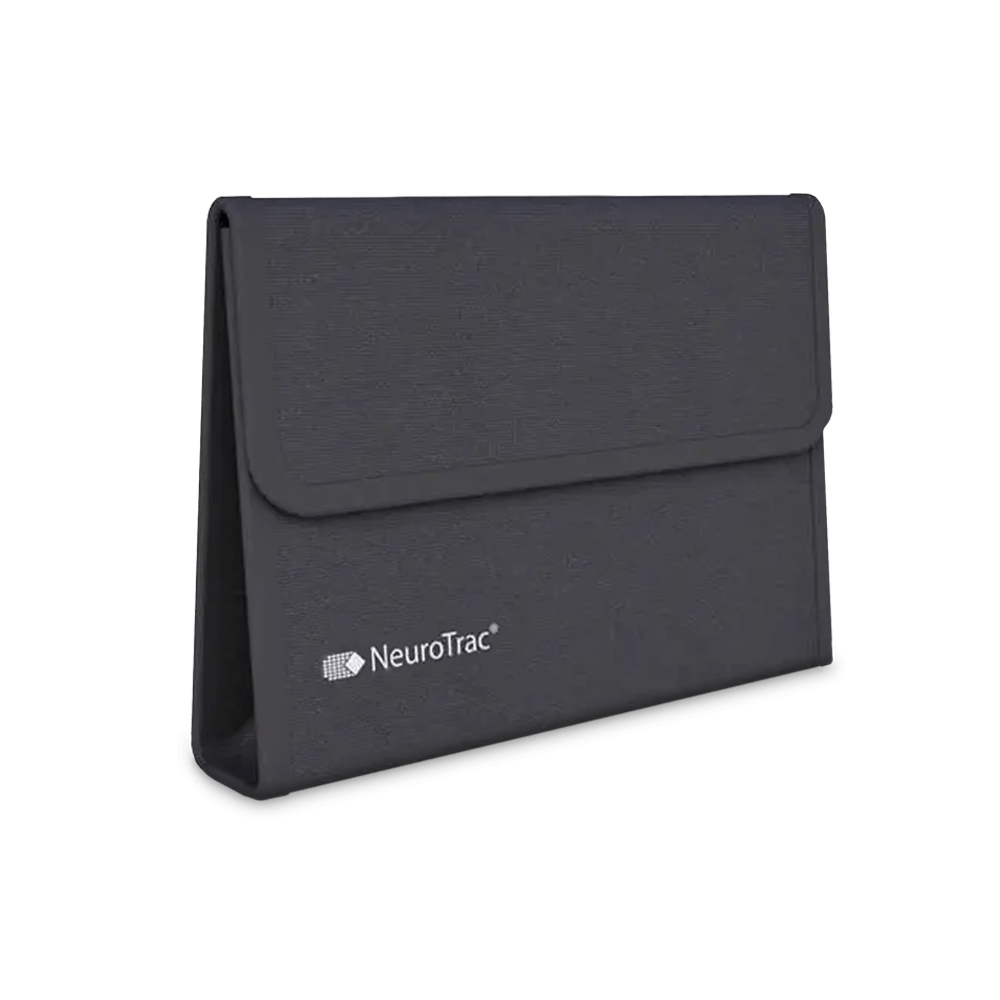

  • 1 x Carry Bag

Nappi Code: 188020-001

Warranty:

All models carry a warranty of 2 Year from the date of purchase.  The warranty applies to the simulator only.  The warranty does not apply to the leads or electrodes.

The Obstetric TENS Stimulator uses four long skin electrodes on the skin close to the spine and connected to the device via lead wires. The stimulation intensity is adjusted until a mild tingling sensation is felt. The NeuroTrac™ Obstetric TENS unit has a handheld push-button control to change the stimulation mode from LOW-frequency burst to HIGH-frequency stimulation. The low frequency is used during rest periods [Between contractions]. As soon as labour contraction is felt strongly, the mode is changed to high-frequency stimulation, once the contractions have subsided, the mode is reverted back to low-frequency burst mode stimulation.

Clinical evidence suggests that to achieve the best pain relief, the stimulator should be used from the first onset of labour pain and for two to three hours after birth. If it is found that insufficient pain relief is achieved with the obstetric TENS unit, then improved relief can be achieved by using smaller amounts of alternative analgesia to complement the TENS unit.

From existing evidence, Obstetric Tens units can be an effective technique for pain control in over 80% of births with no side effects.

Features:

  • Dual-channel Digital Obstetric TENS unit for a simple and non-invasive method to decrease pelvic pain when in labour.
  • Dedicated Labour Pain programme for use with Remote Boost switch for additional pain control during intense pain.
  • No known side effects for mother or baby
  • A clear, bright backlight LCD allows the display to be read more easily in low light or dark conditions.
  • Keypad with bigger buttons for ease of use.
  • Compact, light and reliable

Specifications:

  • Dual-channel: individually isolated circuits.
  • Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load, the maximum will be limited to 65 mA.
  • Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
  • Pulse width: 220μS [2% accuracy].
  • Pulse Rate: 90Hz (Continuous mode) [2% accuracy].
  • Mode: Continuous (Boost mode).
  • Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz, repeating twice every second (Rest mode).
  • Ramp up Time: 0.8 seconds from Rest to Boost.
  • Time duration: continuous until switched off.
  • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
  • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
  • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
  • Physical Dimensions: 108mm x 62mm x 23mm
  • Weight: 0.07Kg without battery, 0.1Kg with battery

What is Included:

  • 1 x Neurotrac Obstetric Unit
  • 1 x Pack of 4 Electrodes
  • 1 x Remote Boost Switch
  • 1 x 9V Battery
  • 2 x Leads
  • 1 x User Manual
  • 1 x Carry Bag

Nappi Code: 188020-001

Warranty:

All models carry a warranty of 2 Year from the date of purchase.  The warranty applies to the simulator only.  The warranty does not apply to the leads or electrodes.
