This rehabilitation device combines advanced technology with simple usability to give you the best treatment in the comfort of your own home. MyoPlus 2 combines Electronic Muscle Stimulation (EMS) with EMG Biofeedback to exercise and strengthen muscles whilst giving visible indications of your muscle strength. Seeing your progress in this way is incredibly important as it can enable you to gradually increase the intensity of your exercise based on your progress.

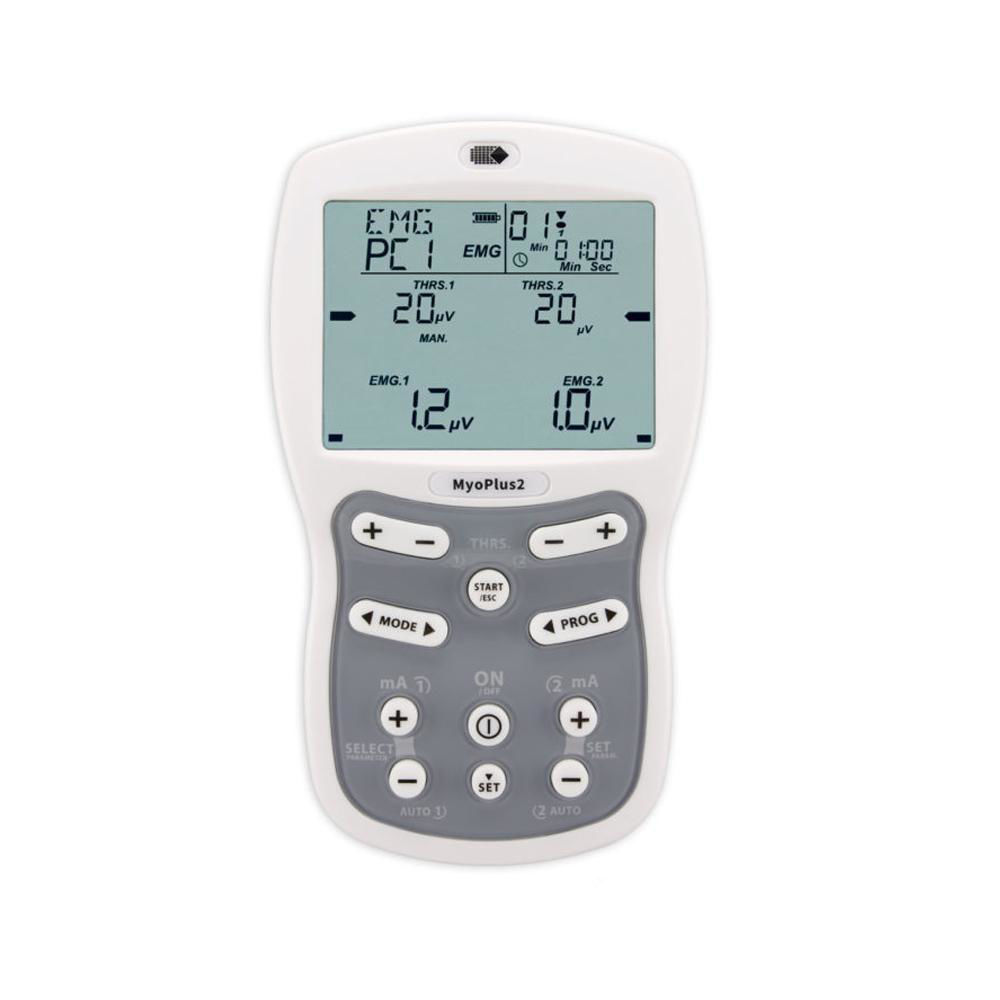

The Verity NeuroTrac MyoPlus2 Unit is the classic biofeedback / ETS / stimulation device. A proper tool for training and progress assessment.
Verity NeuroTrac MyoPlus2 features:
- Pre-set programmes for incontinence treatment, sports and muscular development, neuro-muscular rehabilitation.
- Designed for physiotherapists in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).
- 2 channel EMG (Biofeedback) combined with 2 channels NMES (stimulation).
- 2 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.
- Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.
- Multilingual LCD screen and voice prompts for Biofeedback.
- Manual and Automatic threshold control.
- EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation).
- Stand-alone device or used in conjunction with established multilingual software.
- Up to 10 metres of wireless (Bluetooth) connection for NeuroTrac Software
- For home users: Produces and prints (with the optional PC software) the comprehensive patient progress reports on a day to day basis providing average readings (2 channels) on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current.
- Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation.
EMG (Biofeedback)
- Dual channel EMG
- EMG Range: 0.2 to 2000 μV RMS (continuous)
- Sensitivity: 0.l μV RMS
- Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
- Selectable Bandpass filter – 3db Bandwidth,
- Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts
- Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
- Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)
- Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
- Work / Rest periods: 2-99 seconds
- Number of Trials: 1-99
- Dual channel Stimulator
- Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.
- Type: constant current, maximum output voltage 70 volts +5 / -10 volts
- Waveform: symmetrical, rectangular, bi-phasic with net zero DC current
- Pulse width selection: 50-450 μS (2% accuracy)
- Pulse rate selection: 2-100 Hz (2% accuracy)
- Work / Rest periods: 2-99 seconds
- Time: 1 – 99 minutes
- Ramp up time: 0.1 – 9.9 seconds
- Preset and user programmable treatment Programs
- Automatic output shut off with detection of open electrode above 0.5 mA
- Battery: 4 x AA. Low battery indication at 5.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately! The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 1 minute when in stimulation mode (home screen) and all channels are 0mA.
- Expected average battery set life [of standard 800 mAh, alkaline]:
- MyoPlus2: 12-16 hours in STIM, 25 hours in EMG mode.
- MyoPlus4: 8-16 hours in STIM, 25 hours in EMG mode.
- Environmental conditions for use: +5 to +40 degrees Centigrade. 15-93% Humidity.
- Environmental conditions for storage & transport: -25 to +70 degrees Centigrade. 15-93% Humidity.
- Physical dimensions: 150mm (L) x 89mm (W) x 35mm (D)
- Weight: 0.16kg (without batteries)
What is Included:
- Dual lead wire x 2
- EMG reference wire
- Self-adhesive electrodes (50 x 50 mm)
- 1.5V AA batteries x4

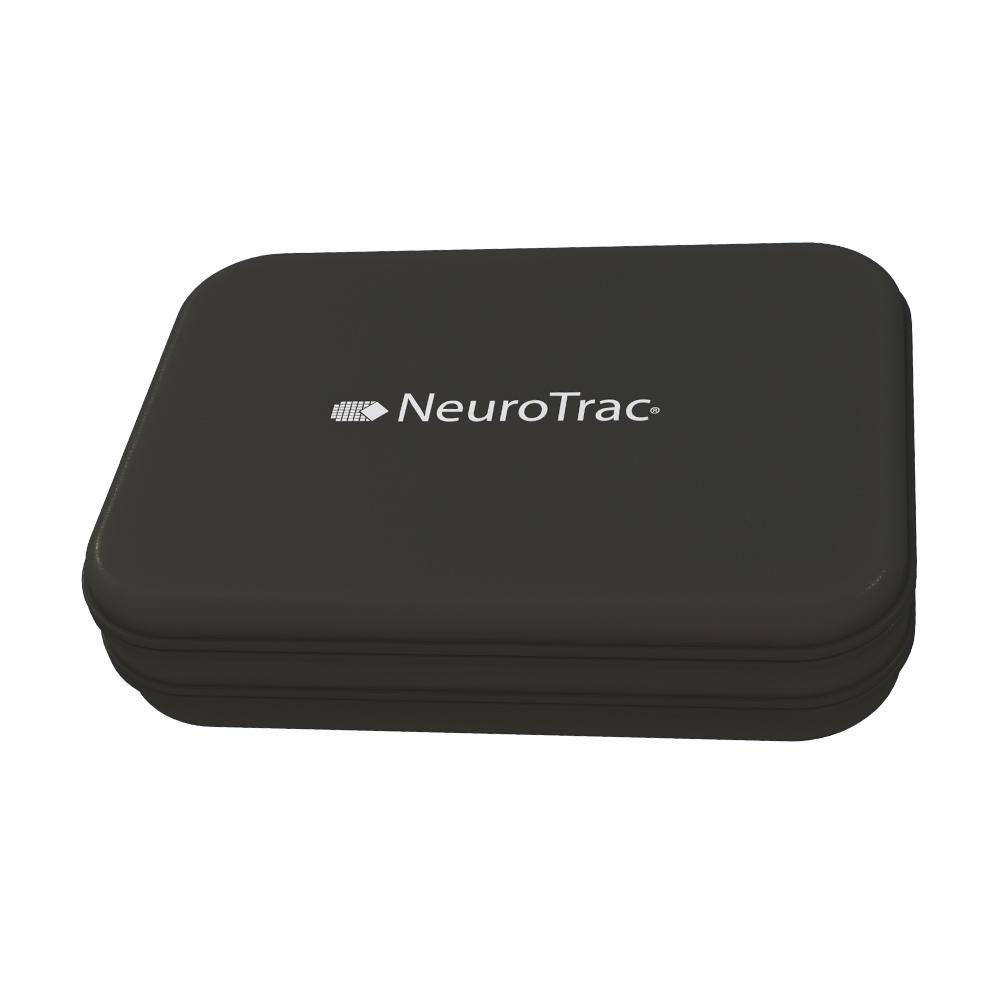

- Carrying Case
- Stand
- Rubber sleeve with belt clip
- Operating Manual
- Gift Box
Nappi Code: None
Warranty:
All models carry a warranty of 2 Years from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
