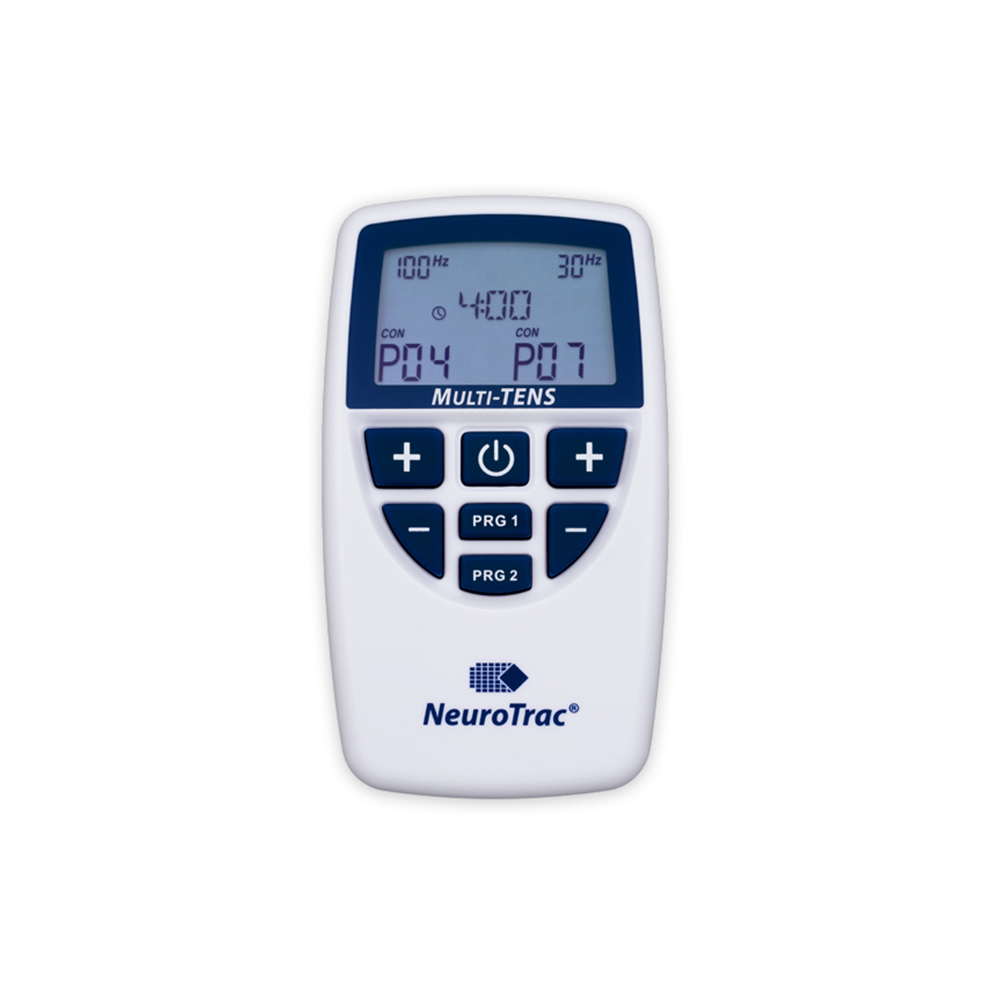

NeuroTrac® MultiTENS

Neurotrac MultiTens is the ONLY TENS machine available today that can run two different TENS modalities at the same time. A Digital Dual Channel TENS unit
Manufacturer: Neurotrac
SKU: C6V350SN
R3 391,35
excluding shipping
decrease increase

The Neurotrac MultiTENS has the ability to run two different TENS programmes at the same time, which allows you to run a combination of high and low-frequency pain relief treatments on two areas at the same time. You can use channel 1 to release pain-relieving endorphins in the area where the pain occurs and at the same time, use channel 2 for triggering the pain gate mechanism, placing your electrodes on the meridian near the vertebra. Endorphins and gate mechanisms are targeted with different combinations of stimuli at the same time, this is where MultiTENS is very useful.

Comprehensive Statistics:

The statistics are backed up by an internal calendar system. When locked, the unit records up to 5 sessions daily for up to 60 days. An easy to use menu system allows the therapist to review the statistics to ensure that the patient is using the unit correctly.

Features:

  • Up to 5 phases can be configured for each of the three custom programmes
  • The custom programmes feature a simple setup of one phase only or an advanced setup of up to 5 phases
  • Neurotrac MultiTENS has the ability to run two different TENS programmes at the same time
  • Easy to use menu system
  • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
  • Keypad with bigger buttons for ease of use.

Specifications:

  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current, Constant current, Max voltage: 180Volts +10/-30V
  • Modes: Continuous, Burst, Modulated and NMS (Work/Rest stimulation)
  • Parameters: 0-90mA, 2-200Hz, 50-450µS
  • 13 Pre-set TENS programmes
  • 4 Pre-set NMS programmes
  • 3 Custom programmes to set up your own treatment
  • Lock mode function to measure the home compliance (mA and time used)
  • Dimensions: 119.2mm x 69mm x 28.7mm
  • Weight: 0.07Kg without battery, 0.1Kg with battery

The below 14 TENS programmes can be selected separately for each channel:

  • P01: Continuous high frequency 90 Hz for general pain relief
  • P02: Continuous high-frequency 90Hz with lower pulse width
  • P03: Continuous high frequency 80 Hz
  • P04: Continuous high frequency 100 Hz
  • P05: Continuous medium frequency 10 Hz
  • P06: Continuous low frequency 2 Hz
  • P07: Continuous medium-high frequency 30 Hz
  • P08: Continuous low frequency 2 Hz
  • P09: Continuous high frequency 80 Hz, short impulses for small areas
  • P10: BURST for local Endorphiens
  • P11: Modulated high frequency 100-65 Hz
  • P12: Modulated medium – high frequency 10-90 Hz
  • P13: HAN TENS. Low-high alternations

The below 4 NMS (Neuro-Muscular Stimulation) programmes are the Work/Rest workout programmes to be used for muscle rehabilitation, strengthening, etc.

  • High-frequency 60Hz Work of 6-sec, followed by 8-sec Rest
  • Medium-High frequency Work of 6-sec, followed by 6-sec Rest
  • High-frequency 80Hz Work of 6-sec, followed by 8-sec Rest
  • High-frequency 60Hz Work of 10-sec, followed by 10-sec Rest

What is Included:

  • 1 x Neurotrac MultuTens Unit
  • 1 x Pack of 4 Electrodes
  • 1 x 9V Battery

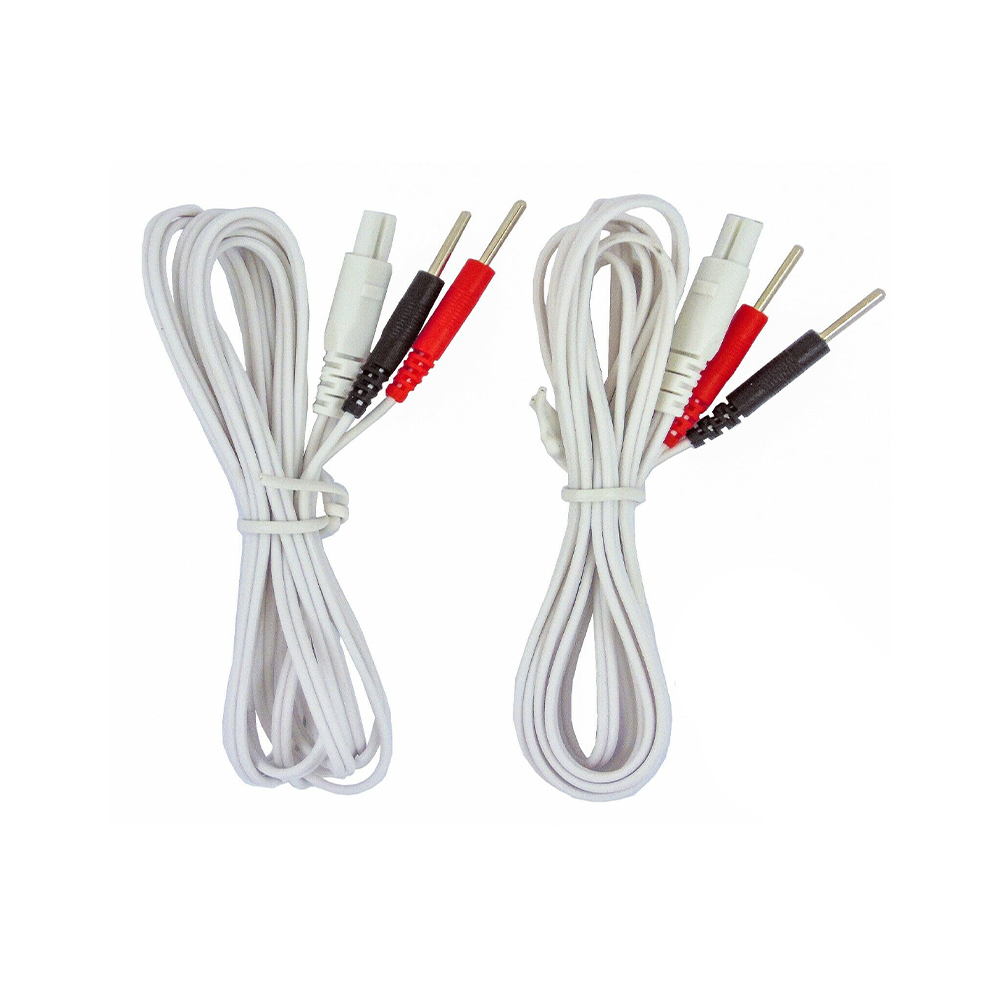

  • 2 x Leads
  • 1 x User Manual

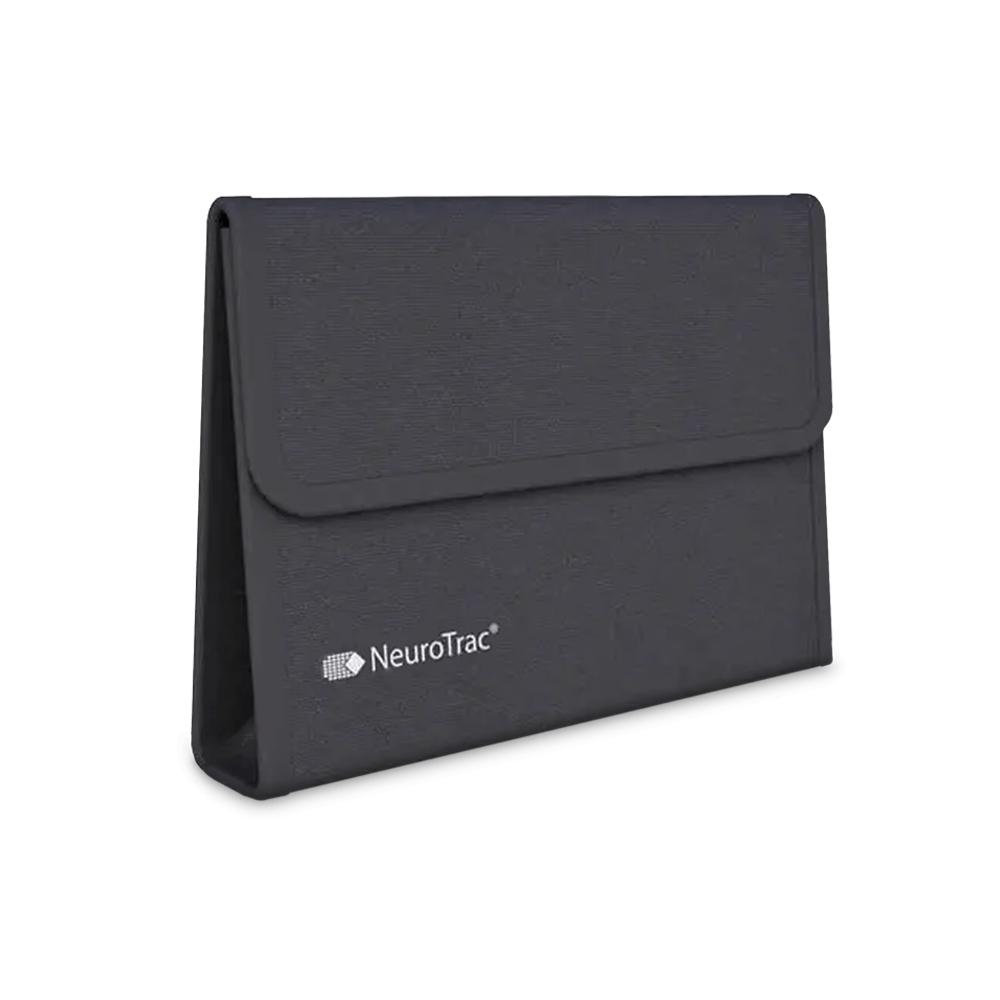

  • 1 x Carry Bag

Nappi Code: 159720-001

Warranty

This model carries a warranty of 2 Years from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.

The Neurotrac MultiTENS has the ability to run two different TENS programmes at the same time, which allows you to run a combination of high and low-frequency pain relief treatments on two areas at the same time. You can use channel 1 to release pain-relieving endorphins in the area where the pain occurs and at the same time, use channel 2 for triggering the pain gate mechanism, placing your electrodes on the meridian near the vertebra. Endorphins and gate mechanisms are targeted with different combinations of stimuli at the same time, this is where MultiTENS is very useful.

Comprehensive Statistics:

The statistics are backed up by an internal calendar system. When locked, the unit records up to 5 sessions daily for up to 60 days. An easy to use menu system allows the therapist to review the statistics to ensure that the patient is using the unit correctly.

Features:

  • Up to 5 phases can be configured for each of the three custom programmes
  • The custom programmes feature a simple setup of one phase only or an advanced setup of up to 5 phases
  • Neurotrac MultiTENS has the ability to run two different TENS programmes at the same time
  • Easy to use menu system
  • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
  • Keypad with bigger buttons for ease of use.

Specifications:

  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current, Constant current, Max voltage: 180Volts +10/-30V
  • Modes: Continuous, Burst, Modulated and NMS (Work/Rest stimulation)
  • Parameters: 0-90mA, 2-200Hz, 50-450µS
  • 13 Pre-set TENS programmes
  • 4 Pre-set NMS programmes
  • 3 Custom programmes to set up your own treatment
  • Lock mode function to measure the home compliance (mA and time used)
  • Dimensions: 119.2mm x 69mm x 28.7mm
  • Weight: 0.07Kg without battery, 0.1Kg with battery

The below 14 TENS programmes can be selected separately for each channel:

  • P01: Continuous high frequency 90 Hz for general pain relief
  • P02: Continuous high-frequency 90Hz with lower pulse width
  • P03: Continuous high frequency 80 Hz
  • P04: Continuous high frequency 100 Hz
  • P05: Continuous medium frequency 10 Hz
  • P06: Continuous low frequency 2 Hz
  • P07: Continuous medium-high frequency 30 Hz
  • P08: Continuous low frequency 2 Hz
  • P09: Continuous high frequency 80 Hz, short impulses for small areas
  • P10: BURST for local Endorphiens
  • P11: Modulated high frequency 100-65 Hz
  • P12: Modulated medium – high frequency 10-90 Hz
  • P13: HAN TENS. Low-high alternations

The below 4 NMS (Neuro-Muscular Stimulation) programmes are the Work/Rest workout programmes to be used for muscle rehabilitation, strengthening, etc.

  • High-frequency 60Hz Work of 6-sec, followed by 8-sec Rest
  • Medium-High frequency Work of 6-sec, followed by 6-sec Rest
  • High-frequency 80Hz Work of 6-sec, followed by 8-sec Rest
  • High-frequency 60Hz Work of 10-sec, followed by 10-sec Rest

What is Included:

  • 1 x Neurotrac MultuTens Unit
  • 1 x Pack of 4 Electrodes
  • 1 x 9V Battery
  • 2 x Leads
  • 1 x User Manual
  • 1 x Carry Bag

Nappi Code: 159720-001

Warranty

This model carries a warranty of 2 Years from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
