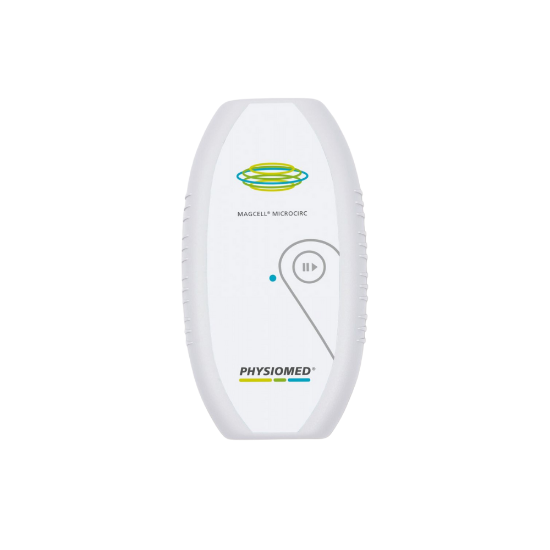

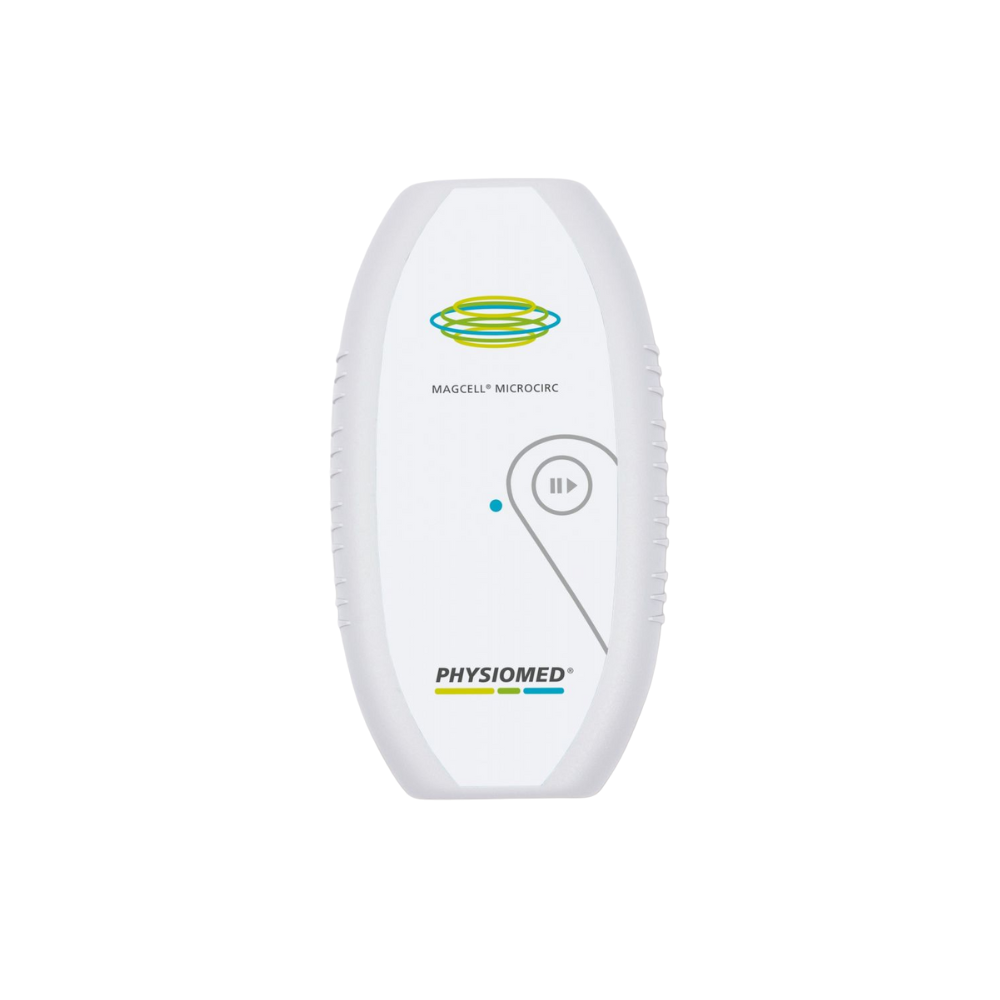

Magcell® Microcirc® is a portable hand device for electrode-free electrotherapy. Magnetic alternating fields are produced over rotation by permanent magnets. A sinusoidal pulsating electromagnetic field (PEMF) is generated over the special magnet arrangement and device function principle. However, with a value of 0,105-tesla field strength, it is many times higher than for commercially available magnetic field therapy devices with coils or mats, which generally operate with field strengths of a maximum of 100 gausses or 0.01 tesla. By contrast, Magcell-therapy units produce field strengths, which are generally stronger by factor 10 than these devices.
According to induction law induced time-variable magnetic fields induce electric fields. The physical effects of Magcell® Microcirc derive from the electric fields produced in living cells and tissue based on induction law. Depending on tissue conductivity the field incites an electric current. Taking into account the specific conductivity of various body tissues and liquids, this electric current can be calculated. Its strength, or more precisely, current density (= current strength per area, A/m²) determines biological effectiveness.
All calculated current densities exceed 10 mA/m² and are thus within the range of effects internationally confirmed and classified as ‘good‘: above the ‘subtle biological effects‘ and within the scope of ‘confirmed macro effects‘ (10-100 mA/m²). Induced current densities are much higher again in blood and body fluids. The term ‘electrode-free electrotherapy‘ for Magcell® Microcirc derives from the distinctly induced solid current densities and exceeding of the threshold value of 10 mA/m²: both of which are not found on equipment using coils or mats.
Body fluids (e.g. joint fluid) play a key role in the relevant therapy indications for Magcell® Microcirc devices. The cells in this fluid or adjacent tissue are exposed to the established current densities. Magcell® Microcirc exceeds by far the recognized effective current densities so that treatment is effective even at a tissue depth of 3-5 cm. Magcell® Microcirc also induces above-threshold current densities in the blood, which are crucial for clinical therapy effects, for instance in respect of blood flow stimulation and immunomodulatory processes. The same applies to interstitial liquids, which are found in virtually all organs and tissue. In bones and fatty tissue with low conductivity current densities are well below the effectiveness threshold of 10 mA/m², so a therapeutic effect in this tissue can scarcely be envisaged.
The following effects of electrode-free electrotherapy with Magcell® Microcirc are clinically recorded:
- pain alleviation and movement stimulation e.g. in the case of osteoarthritis
- substantial improvement in circulation
- reduction of sensory neurotoxicities (polyneuropathy)
Features:
- Electrode-free electrotherapy for therapists and patients
- Pulsating electromagnetic fields (PEMF)
- The field strength of more than 1000 gauss
- Effective treatment concept due to repeatable short-treatment periods
- Through-textile treatment (even through shoes)
- Very easy one-button operation
- Battery-driven
- Optical and acoustic function control
- Automatic switch-off at the end of the therapy period
Specifications:
- Protection class: Internal power supply
- Power supply: 2 x 1.5 V R6 alkaline batteries
- Magnetic field strength max.: 200 mT
- Treatment duration: 5 min.
- Dimensions (W x H x D): 83 x 152 x 25 mm
- Weight: 0.21 kg
What is Included:
- 1 x Magcell Microcirc
- 2 x Batteries
- 1 x Metal Case
- 1 x Manual
Nappi Code: None
Warranty:
This unit comes with a 2 Year Warranty. The warranty does not apply to any of the accessories and only applies to the unit.
