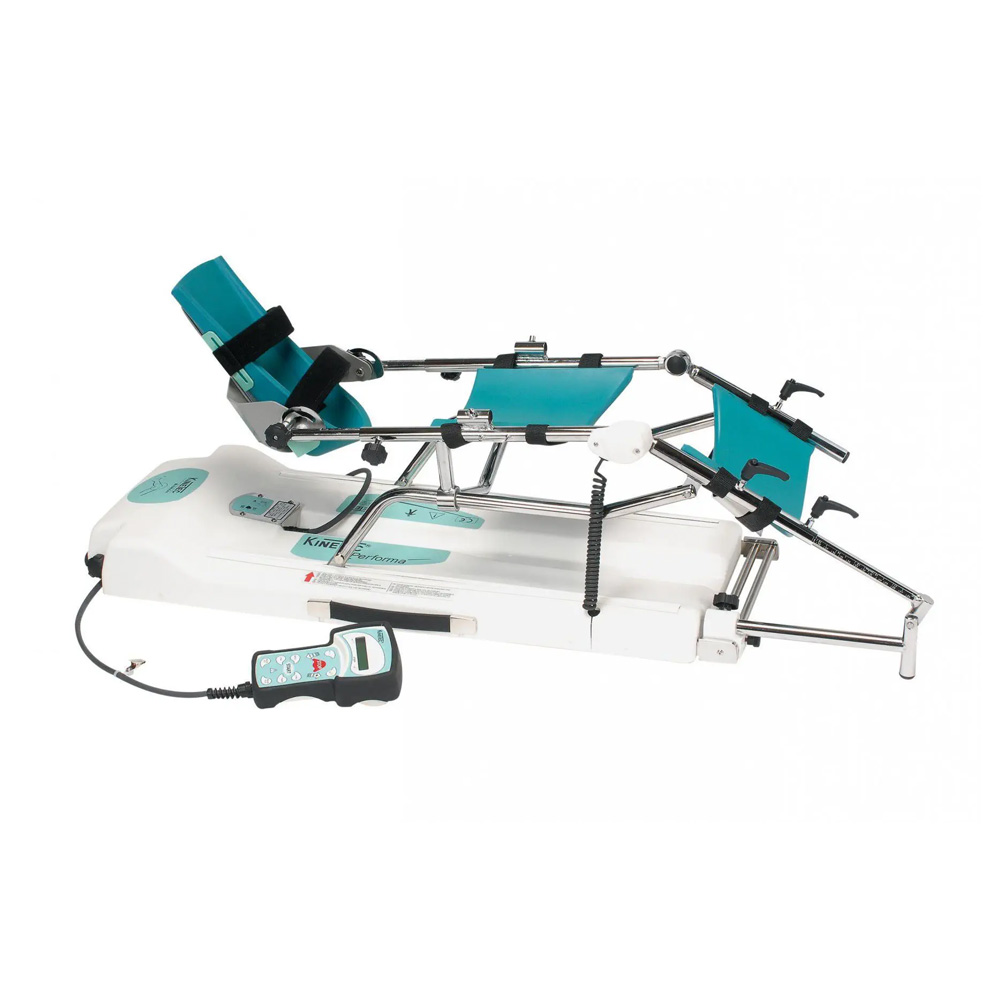

The Kinetec Performa knee CPM excels in comfort and anatomical movement. Kinetec® is a world leader in the design and manufacture of Continuous Passive Motion (CPM) machines. Kinetec® provides an extensive range of CPMs to cover all joint requirements as part of a recognized, clinically-proven rehabilitation process.
The Kinetec Performa Knee CPM is designed to support the user’s lower limbs, thighs, and feet. It is a comfortable and effective knee CPM that encourages pain relief caused by knee replacement surgery, fractures, hip surgery, ligament repairs, and more while reducing the need for pain medication and hospitalization time. The Kinetec Knee CPM is designed to break the cycle of trauma, inflammation, and the loss of range of motion. It provides immediate post-operative continuous passive motion and maintains desired positions for stretching and muscular rest.
The one-of-a-kind design of the Kinetec Performa provides a perfect leg alignment resulting in better anatomical movement for the knee joint. The strong 2-axis structure on the Kinetec Performa makes it the first choice for injured sports patients and those requiring an early active resistance therapy.
Using a USB accessory and software, this option can also be used to capture individual patient session information. The following elements can be set and controlled via the handset - extension, and flexion limits, speed, resistive force, timer, and pause in extension and flexion. The hand control has a clear start/stop buttons and the handset can also be used for selecting pre-set programs, warm-up functions, ROM bypass, and session timing.
An unbeatable combination of good looks and mechanical innovation sets Spectra apart as the Knee CPM of choice. The entire spectrum of needs for knee patients can now be addressed with a carriage that accommodates a full range of patients, without any additional accessories. Lightweight and exceptionally easy to carry, Spectra offers a quick set-up and practical operational modes that enhance patient comfort, compliance, and results.
Treatment modes include
- Warm-Up: Gradual progression to full ROM,
- Modulation: ROM end-point based on patient tolerance
- Session Time: Displays machine run time
- ROM Bypass: Manually bypass pre-set ROM
- Program: Set up to 16 customized programs.
Features:
- Perfect anatomical motion
- Enhanced comfort with right/left leg adjustment
- Suitable for all patient sizes from 1.12m to 2.06m
- Active resistance movement possible
- Greater ROM from -3° to 130°
Specifications:
- Type BF class II electrical device.
- Long-life DC motor and screw-drive mechanism for years of reliable performance.
- ROM: Knee: -3° to 130°,
- ROM: Hip: 80° to 10°.
- Foot positioning: Plantar flexion: 40°, Dorsal flexion : 30°, Abduction/adduction: 30°
- Speed: 50° to 220° per minute.
- Dimensions: 103 x 41 x 33cm
- Weight: 15 KG
Patient Specifications:
- Full patient: 112 to 206 cm
- Full leg: 58 to 110 cm
- Tibia: 32 to 60 cm
- Femur: 26 to 50 cm
- User weight: 135 kg
Options Available:
- With Deluxe Hygienic Pads or
- With Comfort Supports
Nappi Code: None
Warranty:
This unit comes with a 2-Year warranty, this warranty only covers the main unit and not any of the accessories.
