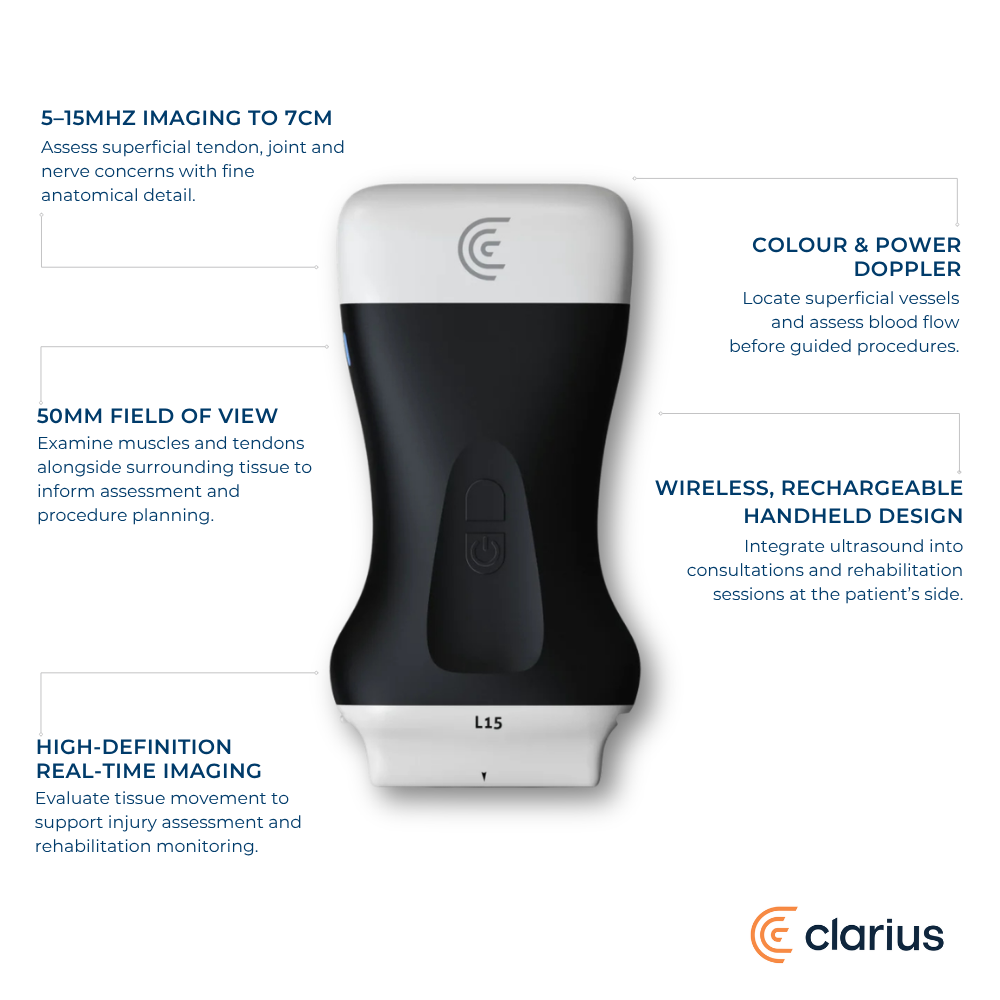

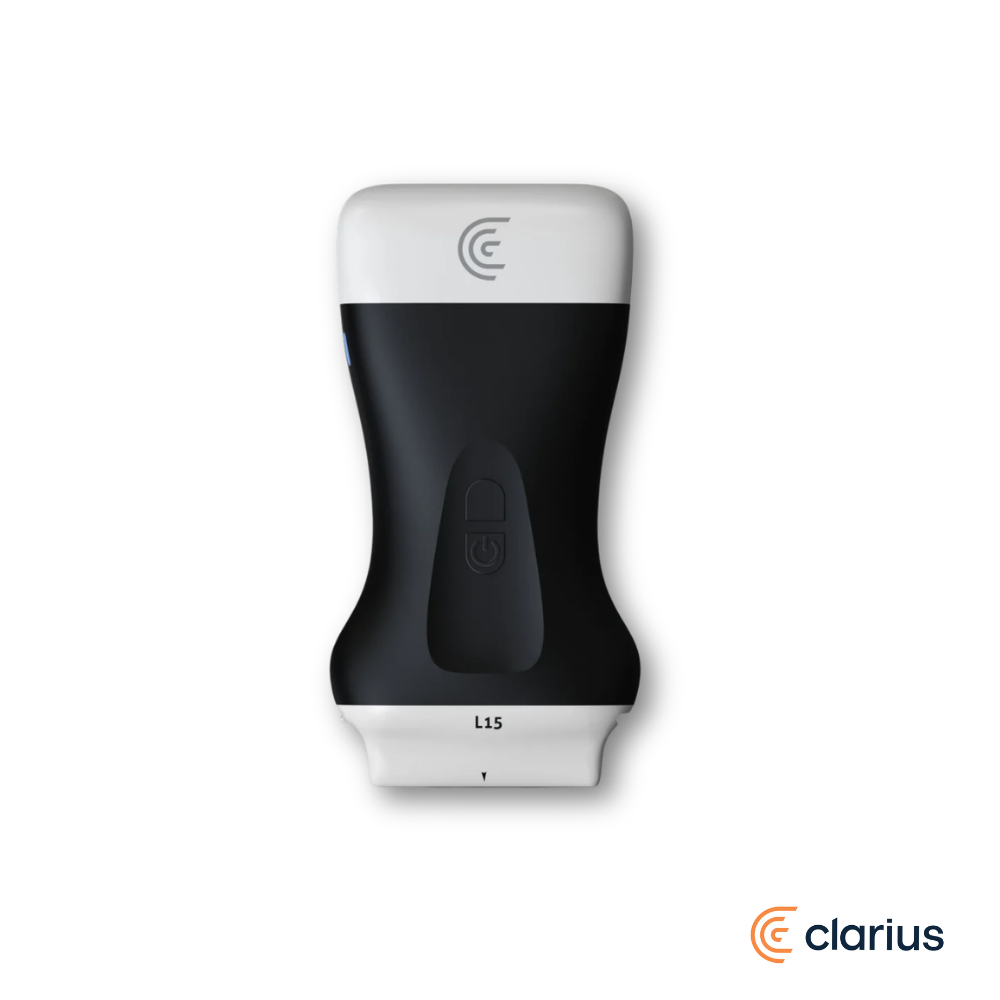

The Clarius L15 HD3 is a lightweight, handheld wireless ultrasound scanner that brings high-resolution imaging directly to the patient. It connects to a compatible smartphone or tablet, removing the need for a scanner cable or conventional console. Its rechargeable battery provides approximately 60 minutes of typical scanning for convenient use across consulting rooms, rehabilitation areas and procedure spaces.
Its high-frequency 5–15MHz range prioritises detailed imaging of anatomy located within 7cm of the skin surface. The wide 50mm linear field of view helps practitioners follow longer structures such as muscles and tendons while examining small joints, ligaments, superficial nerves, vessels and surrounding soft tissue.
B-Mode provides real-time anatomical imaging, while M-Mode supports movement assessment over time. Colour and Power Doppler add blood-flow information for vascular assessment and procedure planning. These standard capabilities support musculoskeletal assessment, rehabilitation monitoring, vascular access, guided procedures and appropriate breast, thyroid, small-parts and superficial plastic-surgery imaging.
*Optional software packages add advanced imaging modes, speciality presets, AI-assisted tools, procedure recording, Clarius Cloud and DICOM connectivity.
Best Suited For:
- Sports Medicine, Physiotherapy and Physical Medicine and Rehabilitation
- Orthopaedics, Rheumatology and Hand Practice
- Podiatry
- Pain Management and Regenerative Medicine
- Plastic, Reconstructive and Aesthetic Practice
- Breast, Thyroid, Small-Parts and Vascular Imaging
MSK Assessment and Guidance:
- Muscle, Tendon and Ligament Assessment: Examine the rotator cuff, elbow tendons, patellar tendon, Achilles tendon, plantar fascia and ankle ligaments.
- Small-Joint and Hand Imaging: Assess fingers, hands, wrists, feet and other shallow joints, including surrounding nerves and soft tissue.
- Rheumatology Applications: Evaluate small joints and surrounding tissue for findings such as synovitis and enthesitis and monitor treatment response.

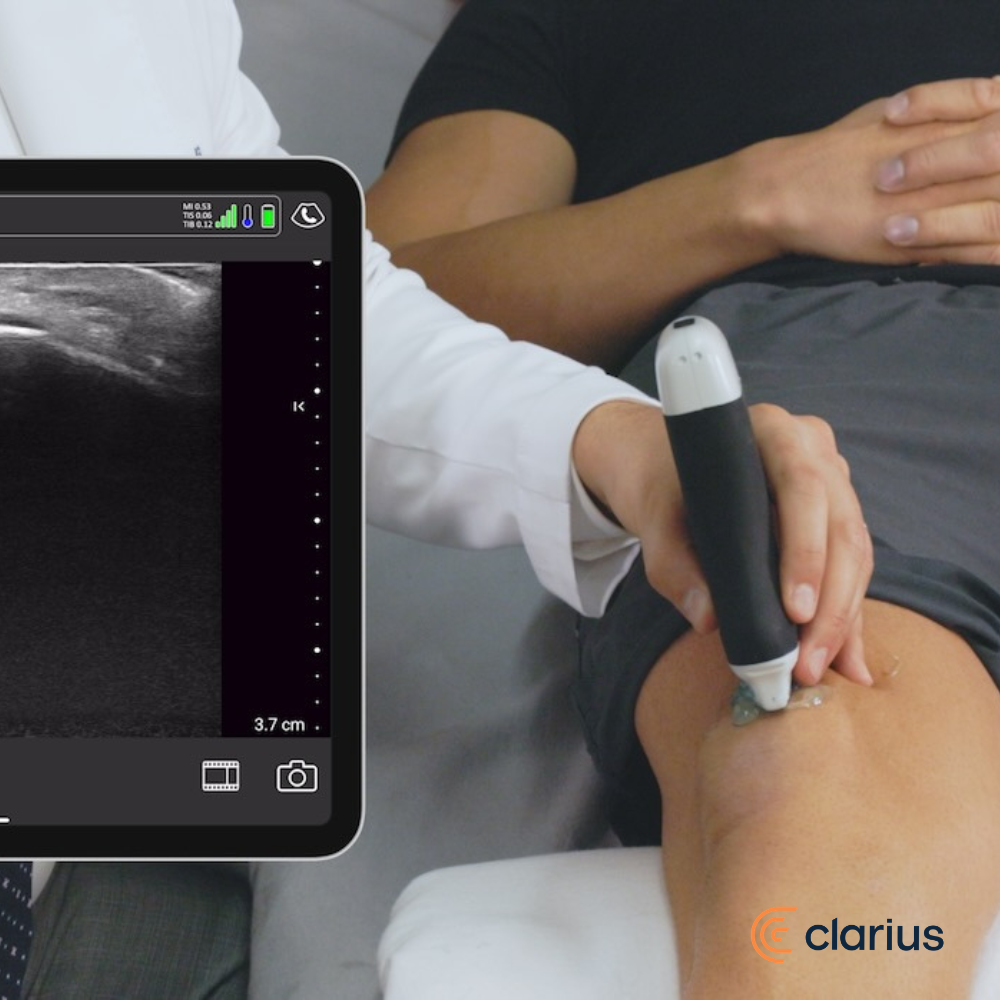

- Dynamic Rehabilitation Monitoring: Observe muscles, tendons and joints during movement to assess injuries and monitor recovery.
- Superficial Procedure Guidance: Visualise suitable targets, vessels and needle paths during injections, vascular access and other appropriate guided procedures.
Plastic Surgery Applications:
- Facial and Soft-Tissue Assessment: Visualise superficial tissue layers, existing fillers, threads, vessels and surrounding facial anatomy.
- Breast and Body Imaging: Assess breast tissue and other superficial face-and-body structures within the 7cm imaging range.
- Vascular Mapping: Use Colour and Power Doppler to locate vessels and assess blood flow around the treatment area.
- Procedure Planning and Guidance: Assess relevant anatomy before a procedure and visualise suitable superficial targets during treatment.
- Follow-Up Assessment: Review tissue, vessels and other relevant superficial anatomy following appropriate procedures.
Why Choose This Scanner?
- Fine Superficial Detail: Examine small and shallow anatomical structures.
- Wide Linear View: Follow muscles, tendons and surrounding anatomy across 50mm.
- Real-Time Assessment: Observe anatomy and movement during examination.
- Standard Doppler Imaging: Add blood-flow information with Colour and Power Doppler.
- Point-of-Care Guidance: Visualise appropriate superficial targets and needle paths.
- Portable Wireless Use: Bring ultrasound directly to the patient.
All Standard Features:
- Superficial Linear Imaging: Combines a 5–15MHz range, 7cm imaging depth and 50mm field of view.
- Detailed Real-Time Imaging: Uses 192 piezoelectric elements and eight beamformers.
- Structural and Dynamic Imaging: B-Mode displays anatomy, while M-Mode tracks movement over time.
- Colour and Power Doppler: Add directional and sensitive blood-flow information.
- Wireless App Connection: Sends live images directly to a compatible smartphone or tablet.
- Programmable Controls: Two scanner buttons provide quick access to selected functions.
- Rechargeable Operation: Provides approximately 60 minutes of typical scanning and charges in approximately 90 minutes.
- Compact Clinical Design: Moves easily between consulting, rehabilitation and procedure areas.
- Durable Construction: Combines a magnesium shell, rubber grip, IP67 protection and 1m drop testing.
Technical Specifications:
- Device Name: Clarius Scanner L15 HD3
- Manufacturer: Clarius Mobile Health Corp.
- Device Description: Portable, general-purpose, software-controlled high-frequency linear diagnostic ultrasound system.
- Frequency: 5–15MHz
- Maximum Imaging Depth: 7cm
- Field of View: 50mm
- Imaging System: 192 piezoelectric elements and eight beamformers
- Standard Imaging Modes: B-Mode, M-Mode, Colour Doppler and Power Doppler
- Indicated Clinical Applications: Ophthalmic, abdominal, intra-operative, paediatric, small organ, musculoskeletal, peripheral vessel, carotid and appropriate procedural guidance
- Ophthalmic Operation: B-Mode only
- Display Platform: Compatible smartphone or tablet
- Wireless Connection: Direct Wi-Fi 802.11n at 5GHz and Bluetooth Low Energy 4.0+
- Controls: Two programmable scanner buttons and app-based controls
- Typical Scan Time: Approximately 60 minutes
- Charge Time: Approximately 90 minutes
- Dimensions: 147 × 76 × 32mm
- Weight: 290g
- Housing: Magnesium shell with rubber grip
- Ingress Protection: IP67
- Drop Testing: 1m
What’s Included:
- Clarius L15 HD3 scanner
- Clarius Charger HD3
- Pulsed-Wave Doppler, Needle Enhance and Strain Elastography
- Voice Controls, Split Screen and Procedure Recording
- T-Mode, MSK AI and Median Nerve AI
- Additional speciality presets, measurements and automated workflows
- Exam Sharing and Clarius Live
- Clarius Cloud and DICOM
- Clarius Classroom and selected training resources
*Optional Accessory: Clarius Power Fan HD3: Required for scanning beyond 15 consecutive minutes. Support longer examinations, guided procedures and training sessions with additional scanner cooling. The Power Fan clips onto the scanner and allows scanning to continue while charging through a connected external power supply (sold separately).
*Optional Software Capabilities: These capabilities are not included as standard. Availability depends on the selected software package, scanner compatibility, region and regulatory approval.
Warranty:
The Clarius L15 HD3 includes a three-year warranty, subject to the manufacturer’s warranty terms and conditions.
*For use by trained medical professionals within the scanner’s indicated applications. Read the User Manual before use for precautions and safety information.
Frequently Asked Questions (FAQs):
- When Should a Practice Choose the L15 HD3?
Choose it when most targets lie within 7cm and detailed imaging of tendons, ligaments, small joints, nerves, vessels or superficial soft tissue is required.
- How Does Frequency Affect L15 HD3 Imaging?
Higher frequencies improve superficial detail but reduce penetration. The 5–15MHz range is optimised for high-resolution imaging within 7cm.
- What Do B-Mode and M-Mode Show?
B-Mode displays real-time two-dimensional anatomy. M-Mode tracks movement along a selected ultrasound line over time.
- Why Are 192 Piezoelectric Elements and Eight Beamformers Significant?
The elements capture detailed ultrasound data, while the beamformers process it rapidly to support clear, smooth real-time imaging.
- Does Scanning Require an Internet Connection?
No. The scanner connects directly to the compatible smartphone or tablet through Wi-Fi. Internet access is needed for connected services such as Clarius Cloud, DICOM and remote sharing.
- Can the Scanner Be Used During Sterile Procedures?
Yes, when used with a compatible approved sterile sheath and the cleaning and disinfection procedures specified in the User Manual.
- What Does an Advanced Software Package Add, and Can It Be Added Later?
Depending on the package and region, it adds advanced Doppler, Needle Enhance, elastography, AI-assisted tools, Voice Controls, recording, sharing and connected workflows. Eligible packages can be added later.
DO NOT USE:
What Makes the L15 HD3 Ideal for Superficial Imaging
5–15MHz High-Frequency Imaging
Provides high-resolution imaging of superficial muscles, tendons, joints, nerves, vessels and soft tissue.
7cm Imaging Depth
Focuses imaging performance on structures located within 7cm of the skin surface.
50mm Linear Field of View
Provides a wide view for following longer superficial structures and surrounding anatomy.
Detailed Real-Time Imaging
A 192-element array and eight beamformers support detailed, smooth real-time imaging.
Standard Imaging Modes
Includes B-Mode, M-Mode, Colour Doppler and Power Doppler as standard.
Wireless Handheld Design
Connects directly to a compatible smartphone or tablet for point-of-care imaging.
