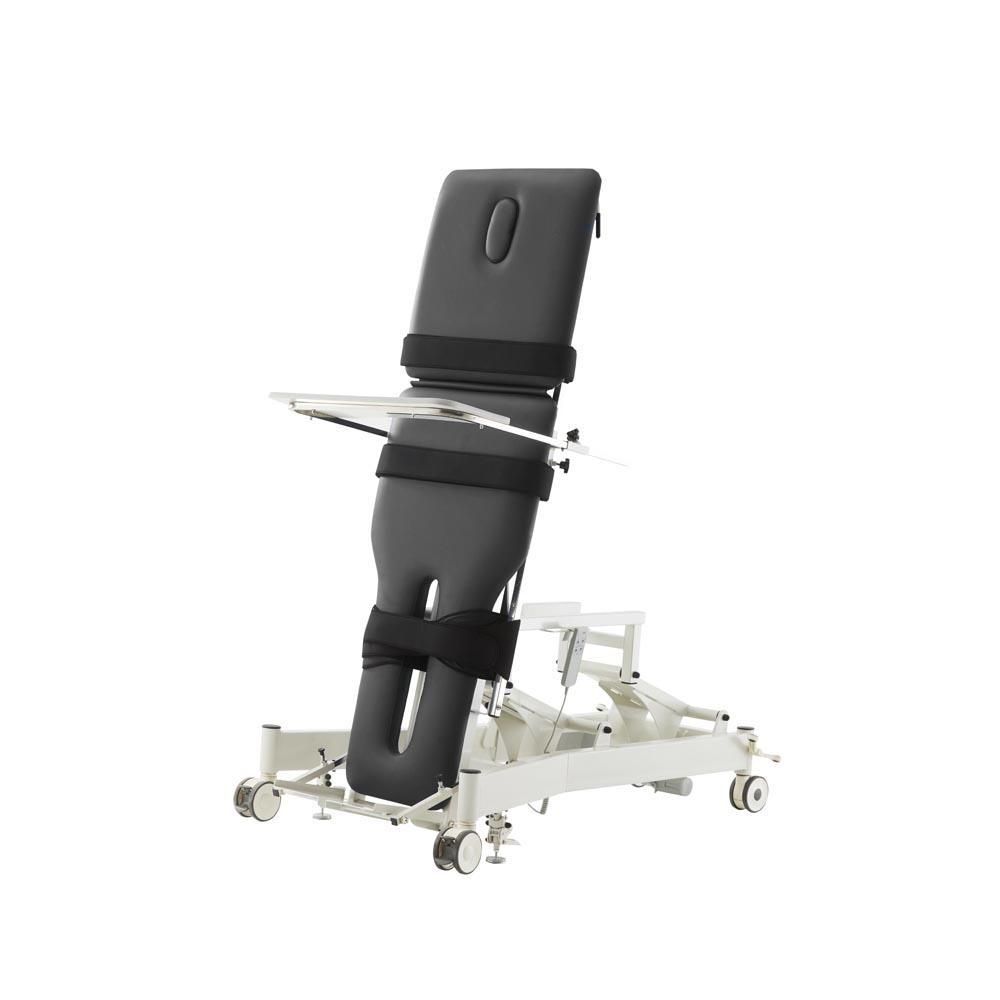

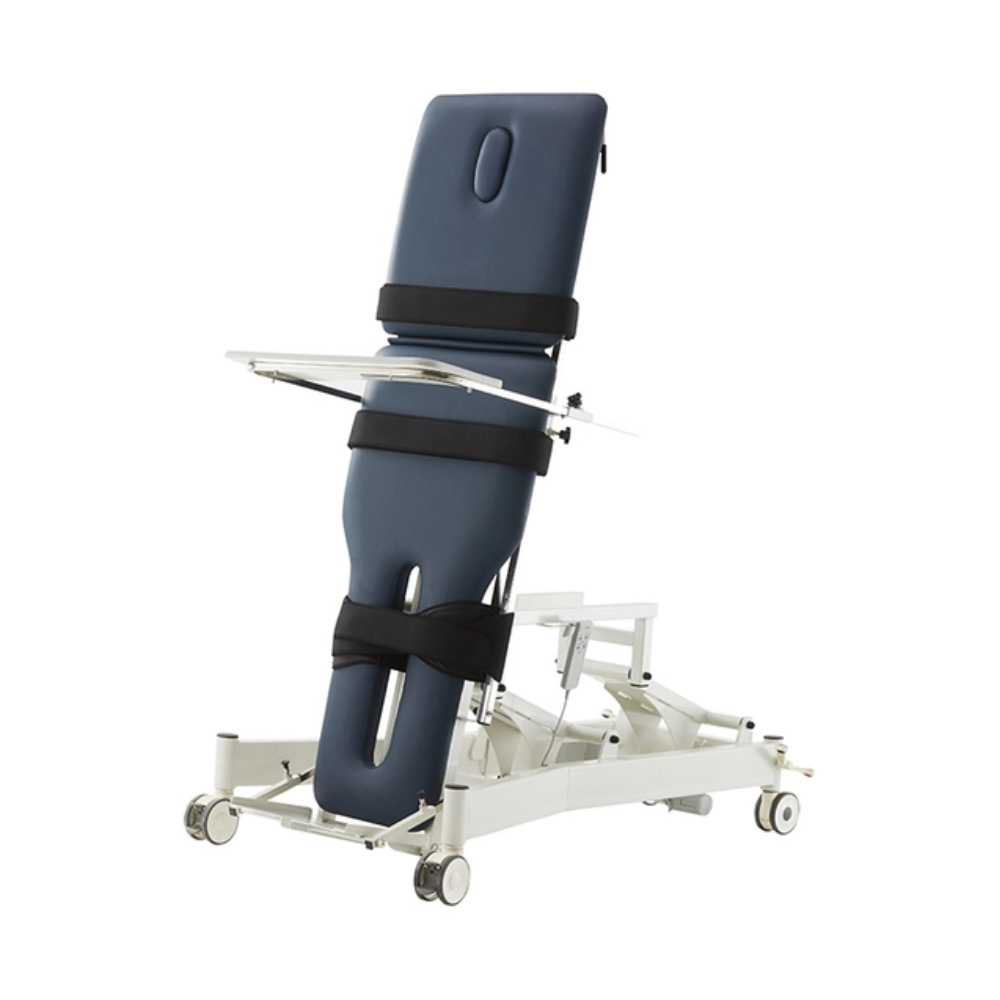

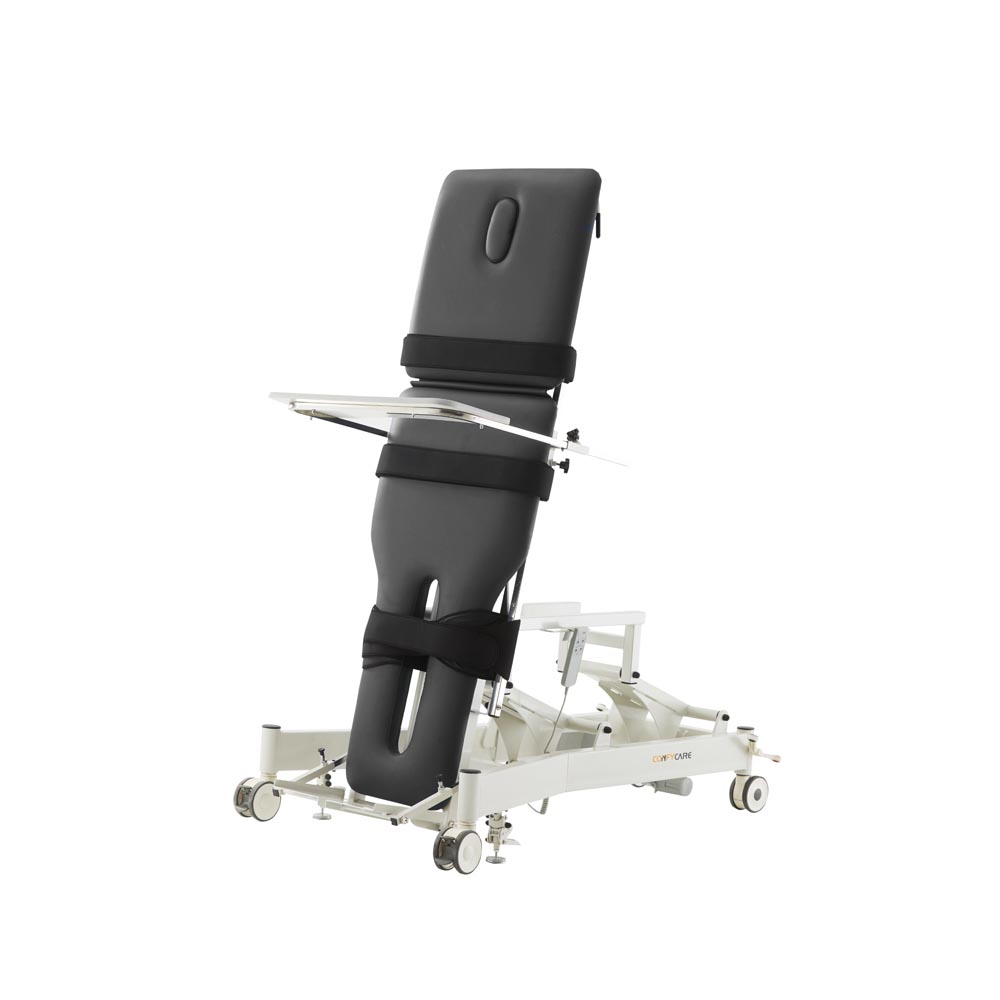

The Synergy-C 2-Section Electric Hi-Lo Tilt Table is engineered to support advanced rehabilitation protocols by enabling controlled patient positioning from horizontal to near-standing alignment. Commonly used in neurological rehabilitation, stroke recovery, spinal injury rehabilitation, and early mobilisation therapy, this table allows clinicians to safely introduce vertical loading while maintaining patient stability and comfort.
Dual electric motors independently control height adjustment and tilt angle, allowing gradual progression tailored to each patient’s tolerance and therapeutic goals. The integrated tilt angle inclinometer assists clinicians in accurately monitoring positioning throughout treatment. Patient safety straps and an activity tray provide additional support and engagement during therapy sessions.
The table features a head section with a face hole and a removable plug for comfort in prone positioning when required. Heavy-duty PVC vinyl upholstery resists fluids, stains, mildew, and wear, supporting infection control standards in medical environments. Rounded frame legs improve safety within busy clinics, while a ground brake system and retractable castors ensure both stability and easy transport.
Powered by a reliable TiMOTION motor system and certified to international medical standards, the Electric Hi-Lo Tilt Table delivers dependable performance for demanding rehabilitation settings, helping clinicians safely restore mobility, circulation, and functional independence.
Features:
- Electric Hi-Lo height and tilt adjustment via hand controller
- Dual motor system for independent positioning control
- Integrated tilt angle inclinometer for accurate therapy setup
- Patient safety straps and activity tray included
- Head section with face hole and removable plug
- Heavy-duty medical PVC upholstery (fluid and stain resistant)
- Rounded frame legs for enhanced safety
- Ground brake for stability on uneven floors
- Large retractable castors for smooth mobility
- Reliable TiMOTION motor technology
Benefits:
- Supports early mobilisation and neurological rehabilitation
- Enables safe progressive standing therapy
- Improves circulation and weight-bearing tolerance
- Enhances therapist control during rehabilitation sessions
- Provides secure positioning for vulnerable patients
- Easy cleaning supports infection control protocols
- Smooth electric adjustments improve clinical workflow
- Durable design suitable for high-frequency clinical use
Included Accessories:
- Patient safety straps
- Activity tray
- Tilt angle indicator
Specifications
- Product Type: 2-Section Electric Hi-Lo Tilt Table
- Height Adjustment: Electric (foot switch controlled)
- Height Range: From 57cm to 104cm in approx 30 seconds
- Wheel Size: 75 mm castor wheels / 7.5 cm
- Frame Construction: Dual lift steel frame
- Upholstery: Antibacterial, washable, flame-retardant
- Padding:
- Thickness: 5 cm
- Foam Density: 36 kg/m³
- Head Section: Dual gas strut adjustable
- Mobility: Multidirectional castors with retractable wheel system
- Feet: Adjustable non-slip rubber feet
- Operation: Quiet electric actuator
- Max Weight Capacity: 250KG

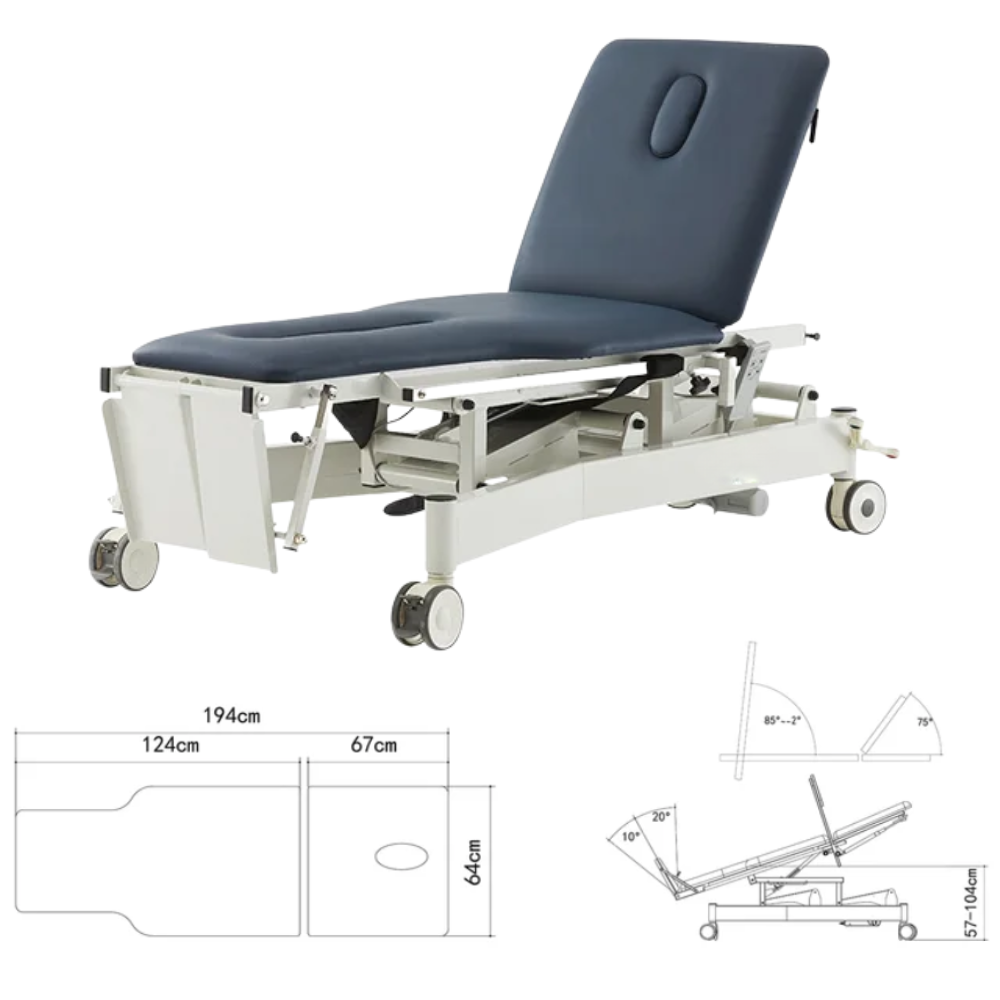

- Dimensions:
- Angle of Headrest: 0° to +75°
- Angle of Tilting: -2° to +85°
- Angle of Footrest: -10° to +20°
- Product Weight: 110kg
- Packaging Size: 208cm x 90cm x 64cm
Nappi Code: None
Warranty
This unit comes with a 3-year warranty on the frame, 1 year for upholstery, 5-year warranty on the Actuator, 2 years for the control box and 1-year warranty on all other parts.
