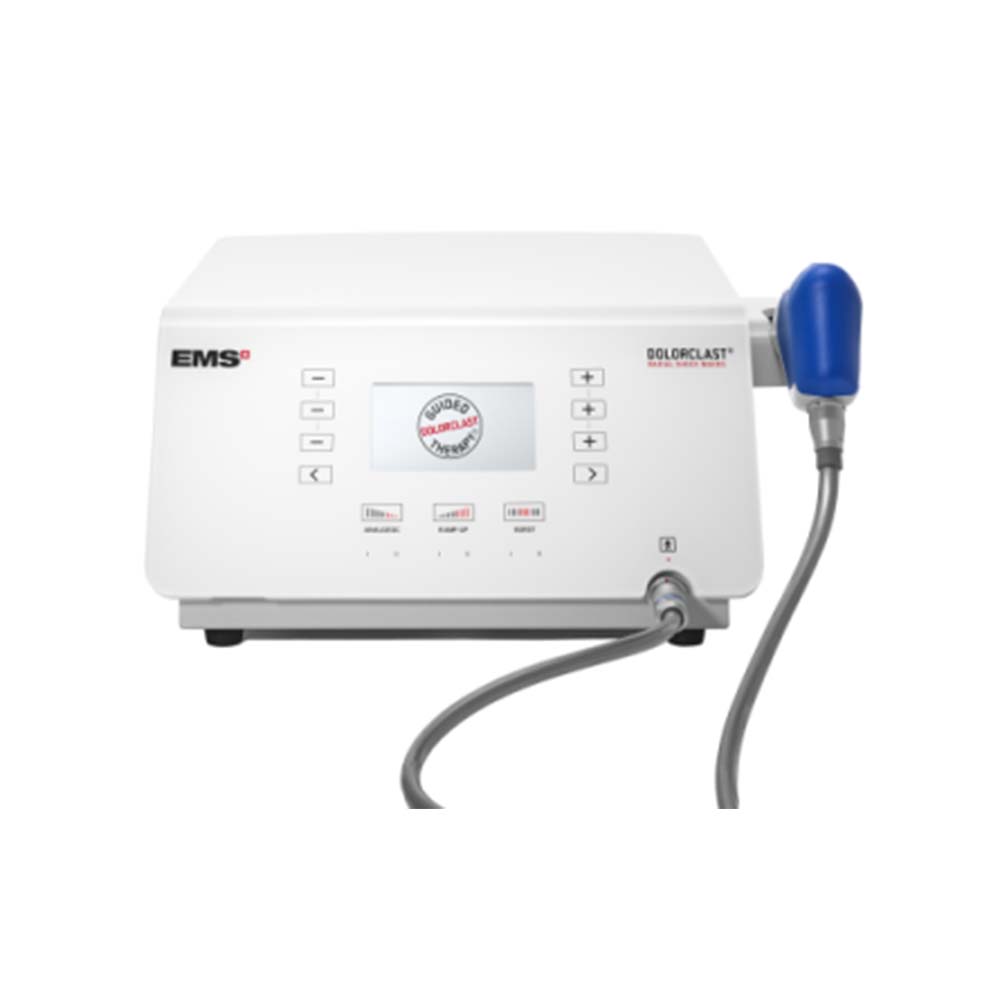

Swiss Dolorclast Radial Shockwave

Experience unmatched performance with the leading Radial Shockwave machine in the industry. Integrated dual compressors with an optimized air management system deliver constant, high-energy impulses up to 25Hz, all without needing an external air compressor—a transportable Radial Shock Waves device designed for versatility.  Bench studies demonstrate that the DolorClast® Radial Shockwave delivers up to 200% more energy density than competing devices at frequencies of 15 Hz and above and maximum pressure. Internal bench study comparison of energy density between the DolorClast Radial Shock Waves (EMS) and the best device among the competition.

The DolorClast® Radial Shockwave is part of EMS' new holistic solution for the treatment of musculoskeletal pathologies: Guided DolorClast® Therapy.

Healthcare professionals use DolorClast® Radial Shockwaves to address superficial sub-acute or chronic musculoskeletal pathologies.

Features:

• Deliver the highest energy everywhere
  Two integrated compressors coupled with an optimized air management system to:

  • Design the most powerful Radial Shock Waves device on the market delivering impulses up to 25Hz.
  • Treat anywhere, anytime with this lightweight, transportable device (15 Kg)
  • Unrivaled performances ensure exceptional treatment outcomes, now available in a portable device.
  • Two integrated compressors coupled with an optimized air management system
  • Easy adjustment of energy setting while treating
  • Shock absorber to reduce the amount of refracted vibrations

• Improve patient experience

  • 5 Smart protocols and 3 modes of action to treat most musculoskeletal pathologies.
  • A set of 7 applicators to adapt to your patient’s pathology.

• Boost your practice productivity

  • Power buttons for an easy adjustment of energy settings while treating.
  • Shock absorber to reduce the amount of refracted vibrations.
  • Quick twist applicators for easy change between treatments.
  • Easy maintenance control thanks to an integrated RFID tag that records a number of used and delivered impulses.
  • Treat muscle injuries or large areas in no time thanks to the 25Hz setting enabling you to deliver 5000 impulses in 3min20s always at maximum energy!

• 3 New Modes for a Patient-Centered Treatment

  • The Analgesic mode delivers shock waves at a high frequency of 25 Hz and low pressure.
    This mode is recommended for highly painful conditions such as entesopathy or for patients with a low threshold of pain.
  • The Ramp-up mode is ideal to ensure exceptional treatment outcomes.
    By steadily increasing the pressure, you are ensured to always deliver the highest dose of energy and cavitation.
  • The Burst Mode delivers shockwaves alternatively at a high frequency of 25 Hz and preset frequency. This mode is recommended for myofascial pain syndrome or muscular approaches. It prevents patients from developing tolerance to certain mechanical stimuli.

Indications:

• Tennis Elbow
• Shoulder Pain
• Golfer's Elbow
• Bursitis Trochanteric
• Patella Tip Syndrome
• Tibial Edge Syndrome
• Achillodynia
• Painful heel.

Specifications:

• MAXIMUM ENERGY FLUX DENSITY
  0.29 mJ/mm² at 4 bar
  0.14 mJ/mm² at 2.4 bar

• OPERATING FREQUENCY
  1 - 25 Hz

• OPERATING PRESSURE
  1 - 4 bar (14.5 - 58 PSI)

• MAXIMUM POSITIVE PEAK PRESSURE AMPLITUDE
  17 MPa at 4 bar

• MAXIMUM NEGATIVE PEAK PRESSURE AMPLITUDE
  10 MPa at 4 bar

• MAINTENANCE
  Simple and quick exchange of piston in the handpiece every 1,000,000 shots

• TECHNOLOGY
  Pneumatic radial pressure waves

• COMPRESSORS
  Two internal compressors

• WEIGHT
  Console: 32 lbs
  Handpiece: 1.86 lbs

• DIMENSIONS (HXWXD)
  Console: 7 in x 13.4 in x 17.7 in
  Handpiece: 4.3 in x 9.8 in x 2 in

• OPERATING CONDITIONS
  Temperature: 50°F to 85°F
  Relative humidity: 35% to 65%
  Max altitude: 9800 feet
  Atmospheric pressure: 20.6 inHg to 47.25 inHg



What is Included:

• 1 x Console
• 1 x Blue handpiece
• 1 x Applicator set
• 1 x Handpiece holder kit
• 1 X Power cord
• 2 x Gel bottles

Nappi Code: None

Warranty:

The overall warranty of the unit is 2 years. Only the maintenance kits in the handpiece have a lifetime limitation: 1 million impulses for the Evo Blue handpiece and 600’000 for the Power+ handpiece.
