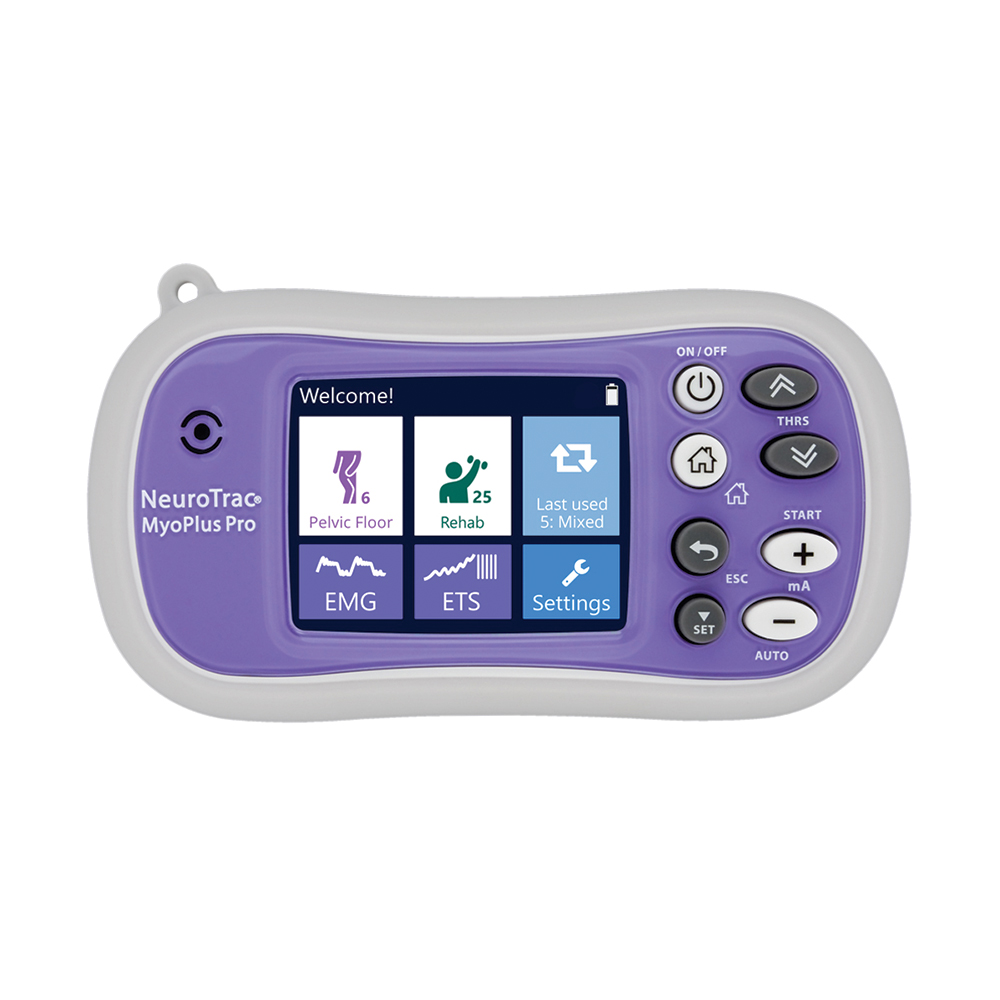

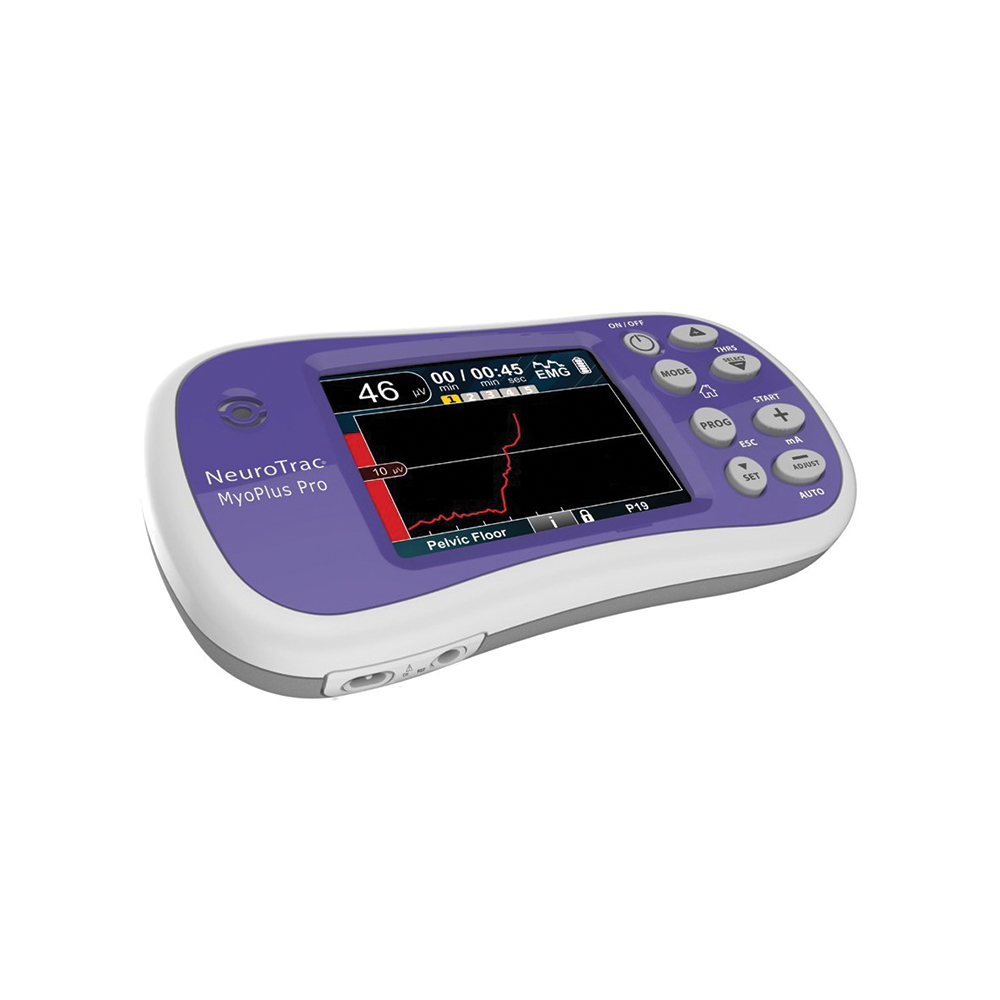

The Neurotrac MyoPlus Pro is designed to be used for a wide range of Physiotherapy, Sports and Rehabilitation applications including Continence and Stroke treatment.
With the MyoPlus Pro, you can use EMG biofeedback and neuromuscular stimulation separately or together. This method is widely used in sports therapy clinics and is particularly good for treating stroke, sports injuries, patellofemoral pain, Bells Palsy, back pain and a wide range of muscular problems, as well as all types of incontinence and prolapse. The NeuroTrac MyoPlus Pro uses EMG diagnosis to determine muscle strength and ETS and Neuromuscular Stimulation to actively exercise the muscles, allowing you to exercise and track your muscle strength as you go. This new model has a full-colour LCD touchscreen, adding a whole new level of interactivity to the treatment! Suitable for use by both adults and children, it features user-friendly software and games that help patients to understand what they need to do in a way that's simple and fun. It has been designed for use both by physical therapists and for at-home users as a learning and feedback tool. Its Bluetooth connectivity and PC software make it easy to track progress and produce reports.
Features:

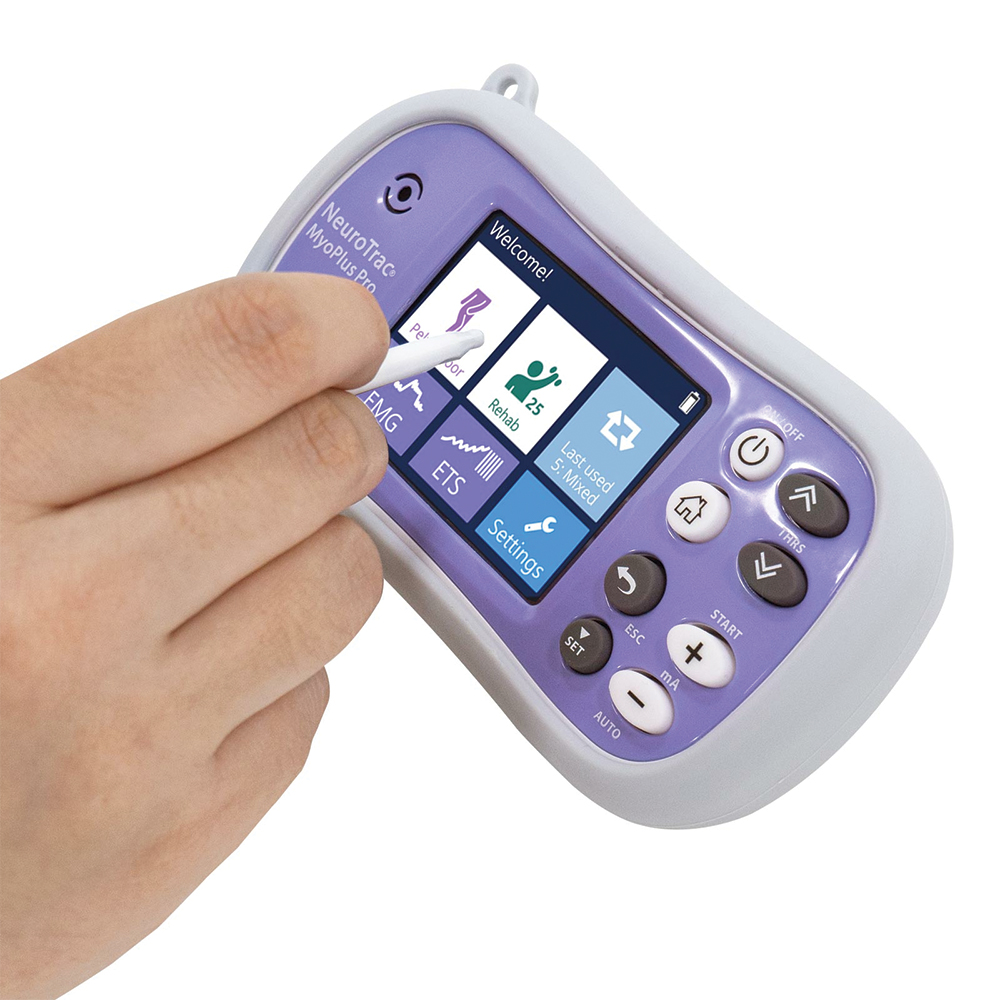

- New and Improved touch-screen with a full-colour display. The new user-friendly interface makes it a self-explanatory unit with interactive learning on the go, including electrode placement, running EMG graph as well as many other helpful tools.
- Pre-set programmes for Incontinence treatment and neuro-muscular Rehabilitation.
- Designed for Physiotherapists in mind, to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).
- Single-channel EMG (Biofeedback) combined with 1 channel of NMES (stimulation).
- Single-channel ETS (EMG triggered stimulation) with single-channel stimulation.
- Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.
- Multilingual LCD screen and voice prompts for Biofeedback.
- Manual and Automatic threshold control.
- EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation).
- Stand-alone device or used in conjunction with established multilingual software.
- Now with Bluetooth connectivity! The unit sends up to 10 meters of wireless data to PC software.
- For home users: Produces and prints (with the optional PC Software) the comprehensive patient progress reports on a day to day basis providing average readings (2 channels) on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current.
- Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation.
EMG Specifications:
- Single channel EMG
- EMG Range: 0.2 to 2000 μV RMS (continuous)
- Sensitivity: 0.l μV RMS
- Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
- Selectable Bandpass filter - 3db Bandwidth; Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% - Reading below 235 microvolts, 10 Hz +/-3 Hz to 370 Hz +/- 10% - Reading
- above 235 microvolts / Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
- Notch filter: 50 Hz (Canada 60Hz) - 33 dbs (0. 1% accuracy)
- Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
- Work / Rest periods: 2-99 seconds
- Number of Trials: 2-99
NMES, TENS Specifications:
- Single channel Stimulator
- Amplitude: 0-90 mA into 500 Ohm load - actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.
- Type: Constant current, maximum output voltage 70 Volts +5 / -10 Volts
- Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
- Pulse width selection: 50-330 μS (10% accuracy)
- Pulse rate selection: 2-100 Hz (5% accuracy)
- Work / Rest periods: 2-99 seconds
- Time 1 - 99 minutes
- Ramp up time: 0.1 - 9.9 seconds
- Preset and user programmable treatment programs
- Automatic output shut off with detection of open electrode above 10 mA (+/- 2mA).
What's Included?
- NeuroTrac MyoPlus Pro unit
- 4 x 1.5V AAA batteries
- Installation key for the NeuroTrac MyoPlus PC software
- Bluetooth dongle
- 4 self-adhesive electrodes
- Connection cables (2mm banana plug)
- Instruction booklet
Nappi Code: None
Warranty
This model carries a warranty of 2 Years from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
