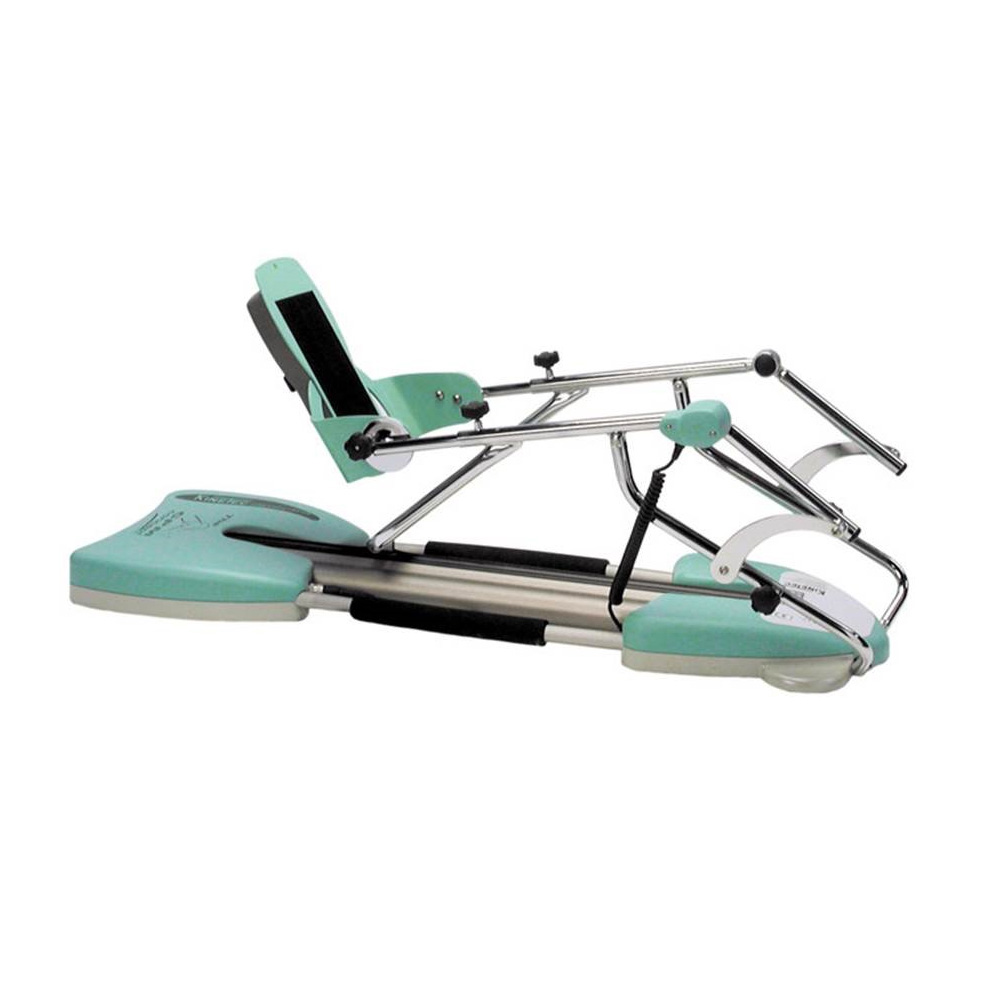

The Kinetec Spectra Essential combines stylish design and outstanding functionality with a simple hand control. Kinetec® is a world leader in the design and manufacture of Continuous Passive Motion (CPM) machines. Kinetec® provides an extensive range of CPMs to cover all joint requirements as part of a recognized, clinically-proven rehabilitation process.
The Kinetec Spectra Knee CPM is designed to support the user’s lower limbs, thighs, and feet. It is a comfortable and effective knee CPM that encourages pain relief caused by knee replacement surgery, fractures, hip surgery, ligament repairs, and more while reducing the need for pain medication and hospitalization time. The Kinetec Knee CPM is designed to break the cycle of trauma, inflammation, and the loss of range of motion. It provides immediate post-operative continuous passive motion and maintains desired positions for stretching and muscular rest.
The new remote control allows for easy adjustments of the R.O.M., Speed, and Pauses in extension and in flexion. The large, clear display gets immediate feedback which is always very useful for the motivation of the patient. All other features are the same as the Spectra Knee CPM except the treatment modes are not available on the Essential.
An unbeatable combination of good looks and mechanical innovation sets Spectra apart as the Knee CPM of choice. The entire spectrum of needs for knee patients can now be addressed with a carriage that accommodates a full range of patients, without any additional accessories. Lightweight and exceptionally easy to carry, Spectra offers a quick set-up and practical operational modes that enhance patient comfort, compliance, and results.
Treatment modes include
- Warm-Up: Gradual progression to full ROM,
- Modulation: ROM end-point based on patient tolerance
- Session Time: Displays machine run time
- ROM Bypass: Manually bypass pre-set ROM
- Program: Set up to 16 customized programs.
Features:
- The Kinetic Spectra Knee CPM possesses the latest in CPM technology.
- Accommodates CPM for knee and hip surgery patients.
- Feel less pain and reduce swelling in the affected joint.
- Stop the formation of scar tissue while improving your overall range of motion (ROM)
Specifications:
- Type BF class II electrical device.
- Long-life DC motor and screw-drive mechanism for years of reliable performance.
- ROM: Knee: -10° to 120°,
- ROM: Hip: 75° to 10°.
- Foot positioning: Plantar flexion: 40°, Dorsal flexion : 30°, Abduction/adduction: 30°.
- Speed: 45° to 155° per minute.
- Dimensions: 103x41x33cm
- Weight: 17 KG
Patient Specifications:
- Full patient: 145 to 195 cm
- Full leg size: 71 to 99 cm
- Tibia: Femur: 38 to 53 cm
- Femur: 33 to 46 cm
- User weight: 135 kg
Options Available:
- With Deluxe Hygienic Pads or
- With Comfort Supports
Nappi Code: None
Warranty:
This unit comes with a 2-Year warranty, this warranty only covers the main unit and not any of the accessories.
