The Digital EV-804A Tens machine comes with multiple TENS therapy modes that will provide instant muscle pain relief. The Digital EV-804A TENS unit sends comfortable stim impulses through the skin that stimulates the nerve in the treatment area, acting as an electric massager, and calming the nerve. Treatment can be given on-demand or via timed therapy sessions up to 60 minutes. In many cases, this stimulation will deliver immediate pain relief. Pain relief varies by individual and by the type of pain you are in.
The EV-804A DIGITAL TENS is a battery operated pulse generator that sends electrical impulses through electrodes to the body and reaches the nerves causing pain. The device is provided with two controllable output channels, each independent of the other. An electrode pair can be connected to each output channel.

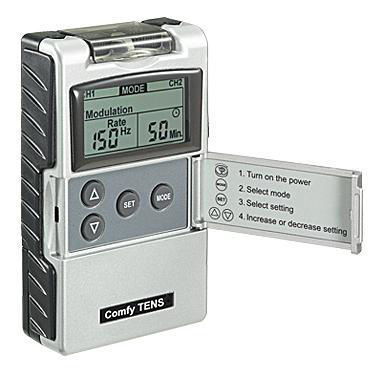

The electronics of the EV-804A DIGITAL TENS create electrical impulses whose Intensity, duration, number per second and modulation may be altered with the controls/switches. Press buttons are very easy to use and the large liquid crystal display showing the exact model and values of parameters is very convenient for patients.
Features:
- Adjustment Control: The power, intensity level, duration and parameters are controlled by pressing buttons and may also be altered with the control switches.

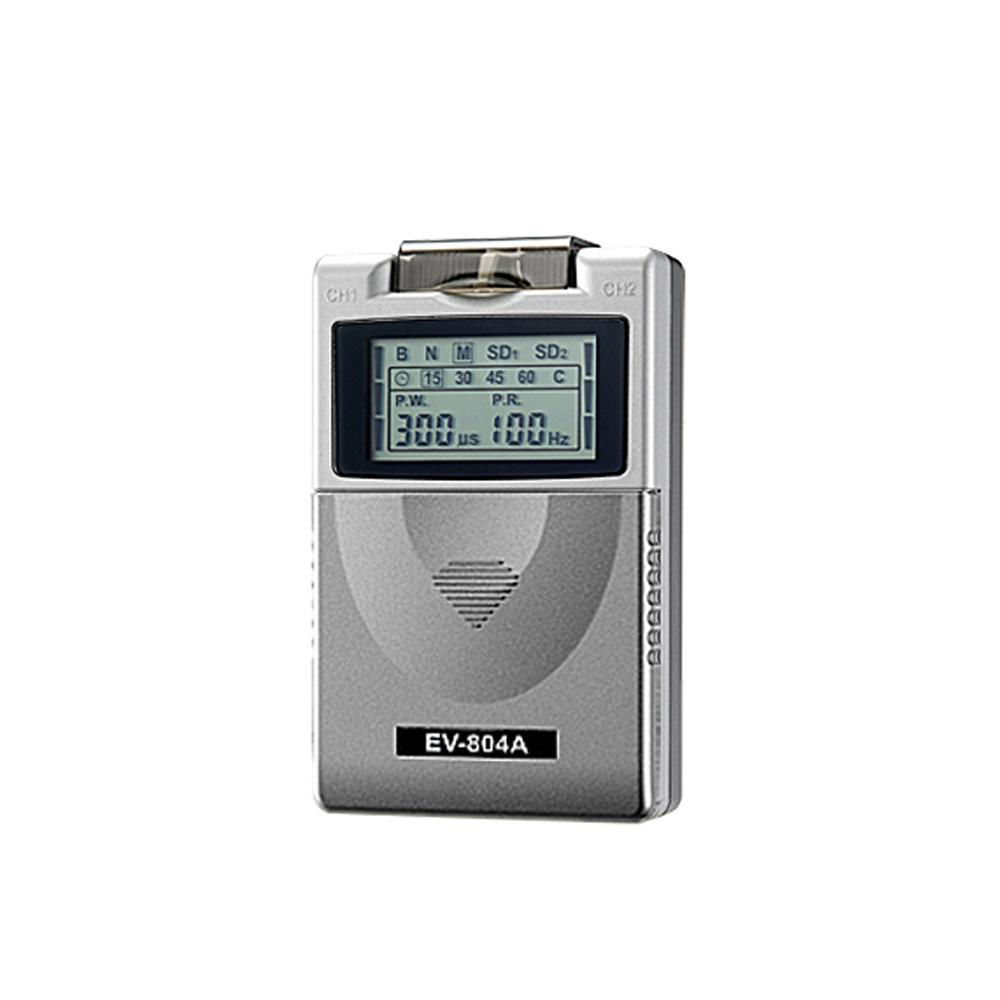

- Large LCD reading showing the settings
- Dimensions: 10cm (L) x 6cm (W) x 2.5cm (H)
- Weight: 150g with battery
- Timer: Selectable, 15, 30, 45, 60 minutes and Continue.
- Patient Compliance Meter: The accumulated treatment time can be recorded. The total recorded time is 999 hours.
Technical Parameters:
- Channel: Dual, isolated between channels
- Wave Form: Asymmetrical Bi-Phasic Square Pulse
- Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step
- Pulse Width: Adjustable, from 50 to 300 microseconds, 10 µs/step
- Modes: B (Burst), N (Normal), M (Modulation), SD1 (Strength Duration), SD2

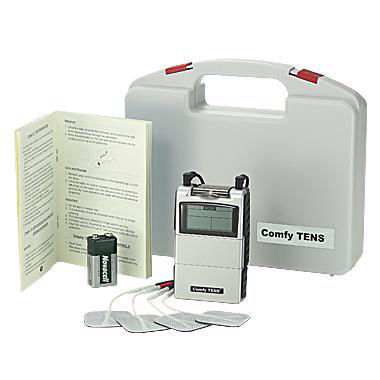

What is Included:
- 1 x EV-804A Unit
- 1 x Pack of 4 Electrodes
- 1 x 9V Battery
- 2 x Leads
- 1 x User Manual
- 1 x Carry Case
Nappi Code: None
Warranty:
This model carries a warranty of 1 Year from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
